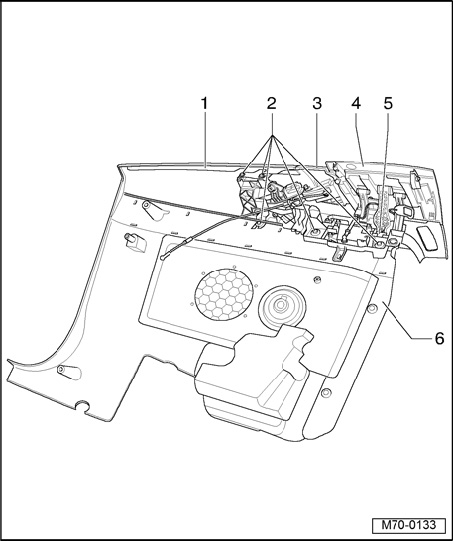

Side Panel - Assembly Overview (Vehicles With Electric-/Hydraulic Convertible, Large Flap Base and Flap Servomotor)

Side Panel - Assembly Overview (vehicles With Electric-/hydraulic Convertible, Large Flap Base And Flap Servomotor)

NOTE: Vehicles with manual convertible and electric-/hydraulic convertible, large flap base and flap servomotor.

Side trim is offered as two-part replacement part. When replacing side trim, side panel - 1 - must be painted in vehicle color and then secured to lower part of side trim - 6 -.







1 - Side panel
- Painting in vehicle color

2 - Bolt
- 5x
- 3 Nm

3 - Small trim
- Painting in vehicle color

4 - Large trim
- Painting in vehicle color

5 - Flap positioning module

Vehicles with electric-/hydraulic convertible

6 - Side trim
