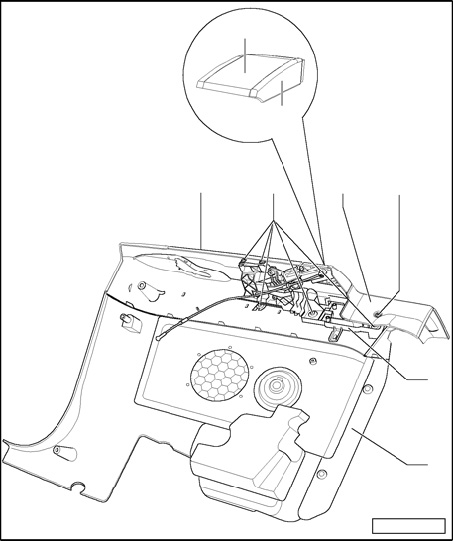

Side Panel - Assembly Overview

Side Panel - Assembly Overview (vehicles With Manually Operated Convertible And Vehicles With Electric-/hydraulic Convertible, Without Large Flap Base And Flap Servomotor)

Side trim is offered as two-part replacement part. When replacing side trim, side panel - 1 - must be painted in vehicle color and then secured to lower part - 7 -.







1 - Side panel
- Painting in vehicle color

2 - Bolt
- 5x
- 3 Nm

3 - Small trim
- Trim - a - is delivered as a replacement part adhered to trim - b -
- Paint trim - a - in vehicle color
- Do not paint trim - b -.

4 - Face plate
- Do not paint.

5 - Bolt
- 1.5 Nm

6 - Flap positioning module

Vehicles with manually operated convertible

7 - Face plate
