Upper Section of A-Pillar Trim, Removing and Installing.

Upper Section Of A-pillar Trim, Removing And Installing.

NOTE: Removal and installation is described for left side of vehicle. The same instructions apply for removal and installation for the right-hand side.

Removing

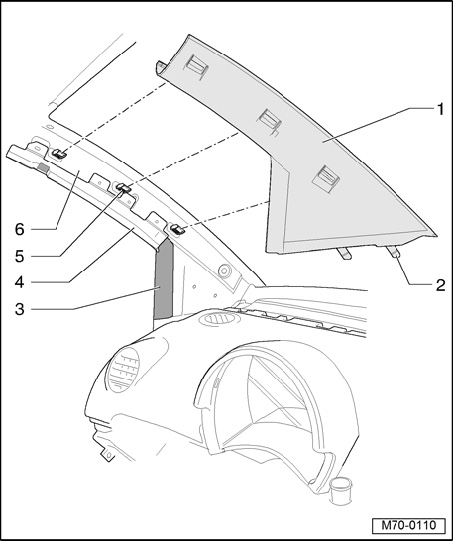

- Unclip trim - 1 -, starting at top, from A-pillar - 6 - and remove.







Installing







- Installation is performed in the reverse order of removal.







NOTE:
- Before installing trim - 1 -, check clips - 5 - for damage and replace if necessary.
- After assembling trim, make sure door inner seal is properly fitted.
