Right Luggage Compartment Trim - Assembly Overview (Convertible)

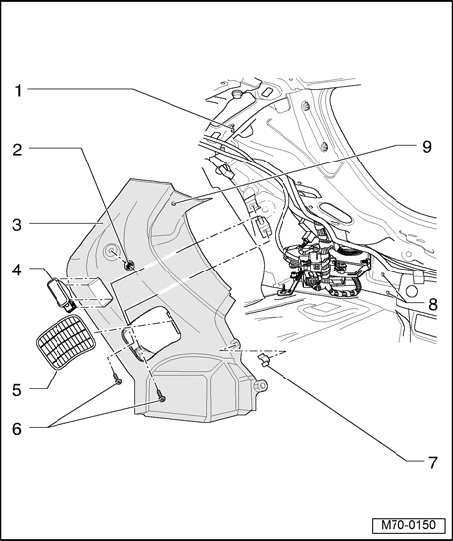

Right luggage compartment trim - assembly overview (convertible)







1 - Stud
2 - Combination nut
3 - Right luggage compartment trim
4 - Interior lighting
5 - Ventilation grid
6 - Bolt
- 2x

7 - Clip
8 - Stud
9 - Clip
