Rear Panel Trim, Removing and Installing (Convertible)

Rear Panel Trim, Removing And Installing (Convertible)

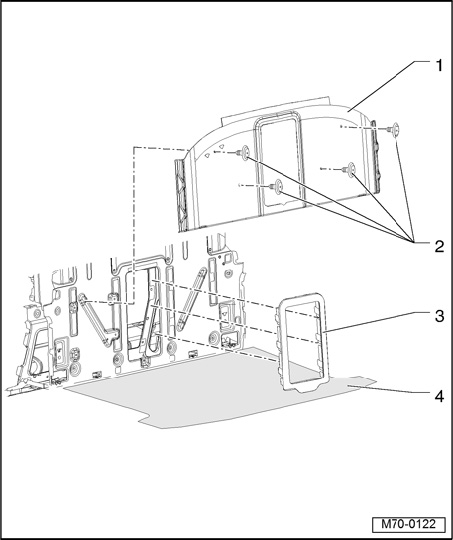

Removing







- Remove luggage compartment floor covering - 4 -.







- Remove luggage compartment side trim.
- Unclip cover - 3 -.
- Remove plugs - 2 -.







- Loosen bolts - 1 - and remove nuts - 2 -.
- Remove radio amplifier - 3 - and disconnect harness connector.
- Remove rear panel trim.

Installing
- Installation is performed in the reverse order of removal.
