Left/Right Luggage Compartment Trim, Removing and Installing (Convertible)

Left/Right Luggage Compartment Trim, Removing And Installing (Convertible)

Removing

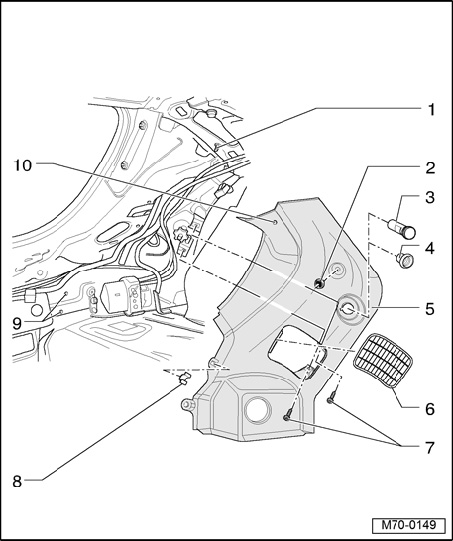

- Remove rear lock carrier cover.
- Unclip ventilation grid - 5 -.
- Remove bolts - 7 -, remove trim - 5 -. If present, disconnect connections for lights or power outlet and remove trim forward.

NOTE: After assembling trim, make sure seal is properly fitted.







Installing
- Installation is performed in the reverse order of removal.
