Left/Right Luggage Compartment Side Trim, Removing and Installing

Left/Right Luggage Compartment Side Trim, Removing And Installing

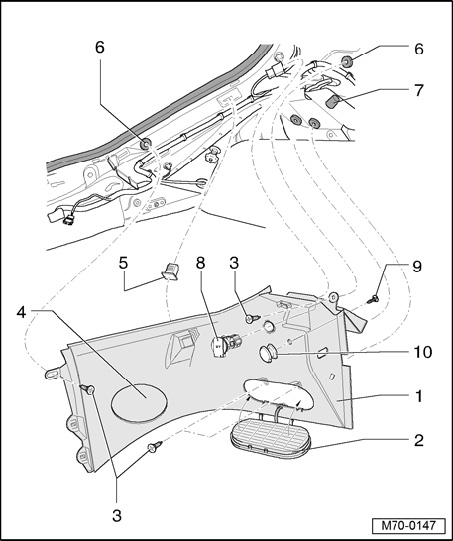

Removing
- Remove rear lock carrier cover.
- Remove side trim.
- Remove C-pillar trim.
- Unclip ventilation grid - 2 -.







- Remove bolts - 3 -. Remove trim - 1 -. If present, disconnect connections for lights, power outlet and/or loudspeaker and remove trim forward.







Installing
- Installation is performed in the reverse order of removal.
