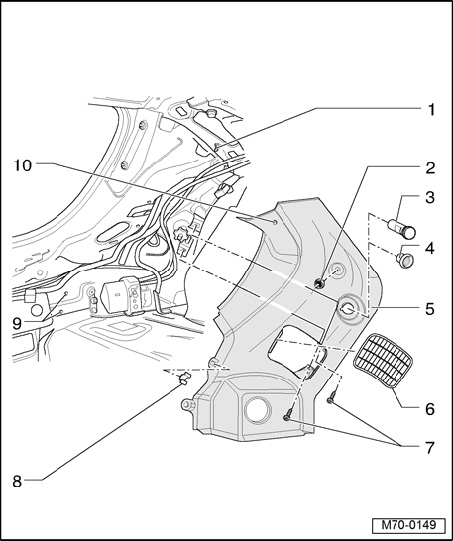

Left Luggage Compartment Trim - Assembly Overview (Convertible)

Left Luggage Compartment Trim - Assembly Overview (convertible)







1 - Stud
2 - Combination nut
3 - Power outlet
4 - Plastic plug
- Vehicles 06.04 -->

5 - Left luggage compartment trim
6 - Ventilation grid
7 - Bolt
- 2x

8 - Clip
9 - Stud
10 - Clip
