Left Luggage Compartment Side Trim - Assembly Overview

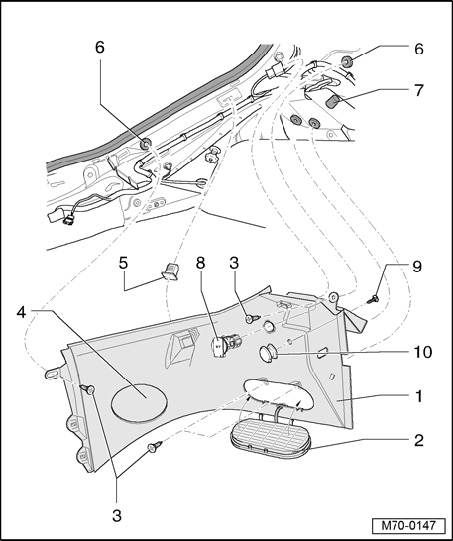

Left Luggage Compartment Side Trim - Assembly Overview







1 - Left luggage compartment side trim
2 - Ventilation grid
3 - Bolt
- 4x

4 - Cover
- Clipped
- Access to tail light and to radio amplifier terminals, if present

5 - Clip
6 - Expanding nut
7 - Rubber buffer
8 - Power outlet
- Vehicles --> 06.04

9 - Bolt
- Only for vehicles with luggage compartment net

10 - Pin nut
- Only for vehicles with luggage compartment net
