Inner and Outer Roof Crossmember Trim, Removing and Installing (Convertible)

Inner And Outer Roof Crossmember Trim, Removing And Installing (Convertible)

Removing
- Remove A-pillar trim.
- Remove sun visor.
- Remove interior mirror.
- Remove lights for make-up mirror.

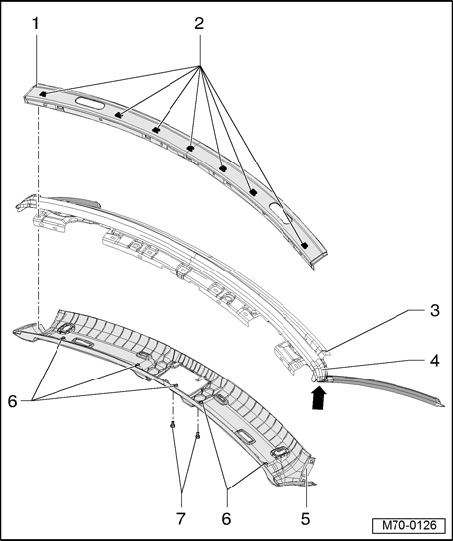

- Remove bolts - 7 -.







- Loosen front trim - 5 - and unclip at rear.
- Remove roof crossmember seal - 4 -.
- Loosen door seals in area of A-pillar - arrow -
- Unclip trim - 1 - upward.

Installing







- Installation is performed in the reverse order of removal.







NOTE: Before installing trim - 1 - and - 5 -, check condition and seating of clips - 2 - (7x) and - 6 - (5x). Replace clips if necessary.
