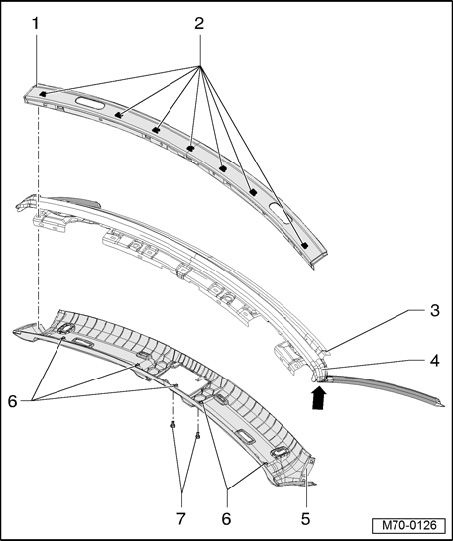

Inner and Outer Roof Crossmember Trim - Assembly Overview (Convertible)

Inner And Outer Roof Crossmember Trim - Assembly Overview (Convertible)







1 - Outer trim
2 - Clip
- Qty. 7

3 - Roof crossmember
4 - Seal
5 - Inner trim
6 - Clip
- 5x

7 - Bolt
- 2x
