Sun Visor, Removing and Installing

Sun Visor, Removing And Installing

NOTE:
- Removal and installation is described for left side of vehicle. The same instructions apply for removal and installation for the right-hand side.
- Removal and installation is described for vehicles without "Homelink" function in sun visor. Removal and installation is identical for vehicles with "Homelink" function.

Removing
- Switch ignition off.

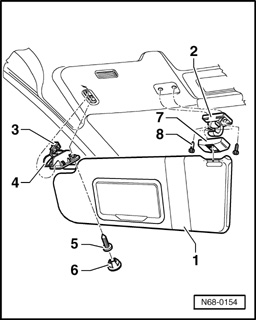

- Unhook sun visor - 1 - out of mount - 2 -.
- Pry off cap - 6 -.
- Remove bolt - 5 -.
- Remove sun visor mount - 4 - from mounting and disconnect harness connector - 3 -.
- Pry off cap - 7 -.
- Remove bolts - 8 - and remove mounts - 2 -.

Installing
- Installation is performed in the reverse order of removal.
