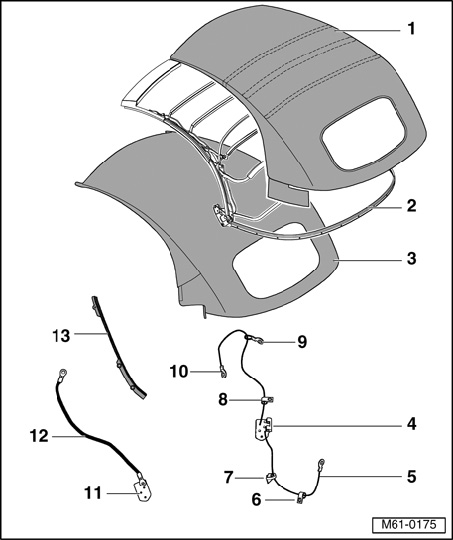

Headliner Tensioning System, Assembly Overview

Headliner Tensioning System, Assembly Overview --> 11.03

Vehicles 12.03 -->







1 - Convertible top cover
- Replacing:
- Electric-/hydraulic convertible top
- Manual convertible top

2 - Convertible top frame
- Removing convertible top:
- Electric-/hydraulic convertible top
- Manual convertible top

3 - Convertible top headliner
4 - Guide rail headliner
5 - Lower cable track guide with eyelet
- Secured to frame using pop rivet
- Always replace

6 - Middle deflector
- Secured to frame using pop rivet

7 - Lower deflector eyelet
- Secured to frame using pop rivet

8 - Upper deflector
- Secured to frame using pop rivet

9 - Deflecting cable with eyelet
- Secured to frame and to guide with pop rivet

10 - Upper cable track guide with eyelet
- Secured to frame using pop rivet
- Always replace

11 - Reinforcement plate
- With securing clips

12 - Tension strap with eyelet
13 - Headliner guide rail
- Secured to frame using three pop rivets
