Sill Panel Trim, Removing and Installing (Convertible)

Sill Panel Trim, Removing And Installing (convertible)

NOTE: Removal and installation is described for left side of vehicle. The same instructions apply for removal and installation for the right-hand side.

Removing
- Remove operating lever.

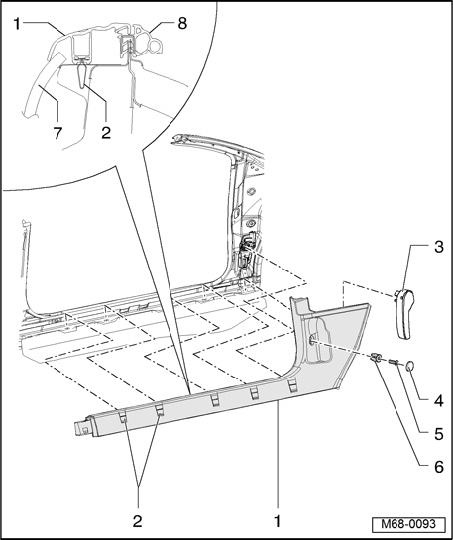

- Remove bolt - 5 - and remove expanding nut - 6 -.







- Remove side trim.
- Unclip sill panel - 1 - upward.

Installing







- Installation is performed in the reverse order of removal.







NOTE:
- Before installing sill panel, check clips - 2 - and replace, if necessary.
- After installing, make sure that sill panel seal is properly seated - 8 -.
