Sill Panel Trim, Removing and Installing

Sill panel trim, removing and installing

NOTE: Removal and installation is described for left side of vehicle. The same instructions apply for removal and installation for the right-hand side.

Removing
- Remove lower A pillar trim.
- Remove side trim.

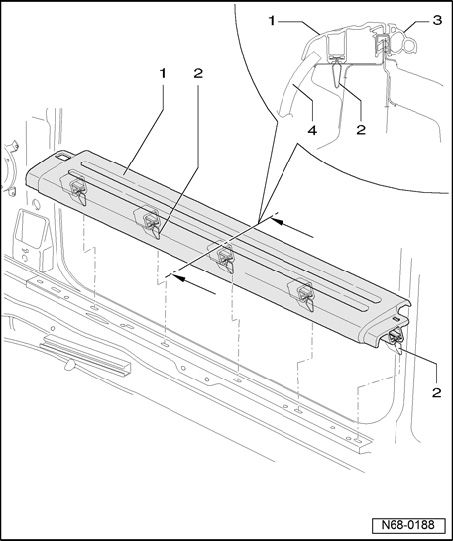

- Unclip sill panel - 1 - upward.







Installing







- Installation is performed in the reverse order of removal.







NOTE:
- Before installing sill panel, check clips - 2 - and replace, if necessary.
- After installing, make sure that sill panel seal is properly seated - 3 -.
