Sill Panel Trim - Assembly Overview (Convertible)

Sill Panel Trim - Assembly Overview (convertible)

NOTE: Sill panel trim is covered by side trim at rear. Retaining clips of these trim parts are located in recesses at end of sill panel.

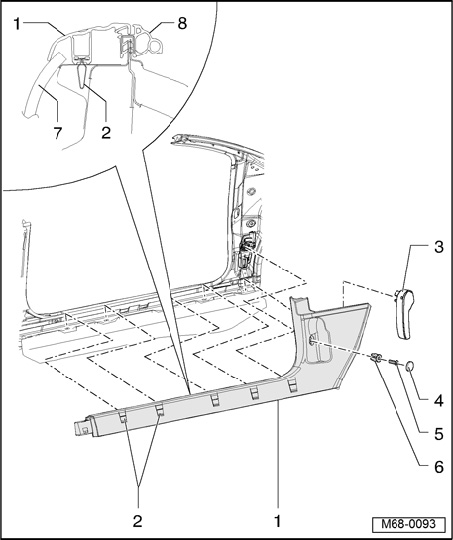

1 - Sill panel trim
- Removing and installing

2 - Clip
- 6x

3 - Actuating lever
4 - Cap
5 - Bolt
6 - Expanding nut
7 - Carpet
8 - Internal door seal
