Sill Panel Strips, Replacing (Convertible)

Sill Panel Strips, Replacing (Convertible)

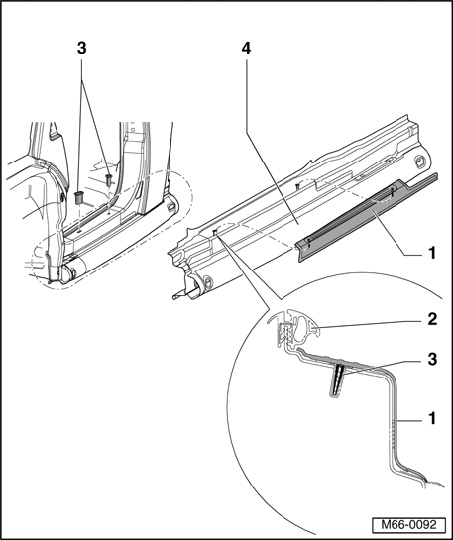

1 - Sill panel strip
- Self-adhesive
- Removing:
- Heat sill panel strip using hot air gun before removing.

- Installing:
- Clean outer panel with mineral spirits, treat with silicone remover and rub dry.
- Insert grommet into sill hole.
- Peel off protective paper, position sill panel strip using guide pin and adhere (press on firmly). Processing temperature approx. 20°C.

2 - Internal door seal
- Peel off for installing scuff guard foil

3 - Grommet
4 - Sill
