Rear Shelf, Removing and Installing

Rear Shelf, Removing And Installing

Removing

Vehicles with electric-/hydraulic and manual convertible
- Remove left and right side trim.
- Remove rear headrest cover.
- Remove anti-rollover supports on trim.

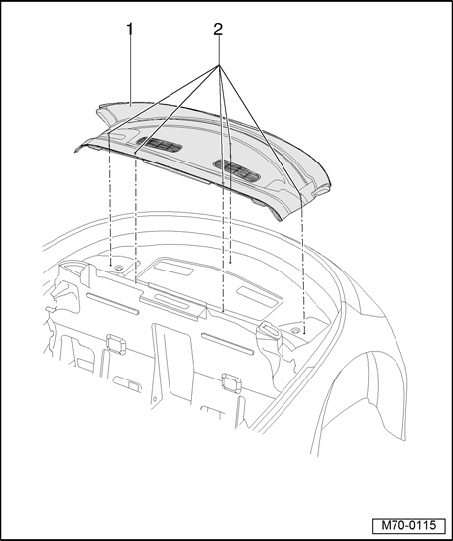

- Unclip rear shelf - 1 -, press out clips - 2 - from luggage compartment and remove upward.







Installing
- Installation is performed in the reverse order of removal.
