Grab Handle With Cell Phone Retainer (Instrument Panel), Removing and Installing

Grab Handle With Cell Phone Retainer (instrument Panel), Removing And Installing

Removing

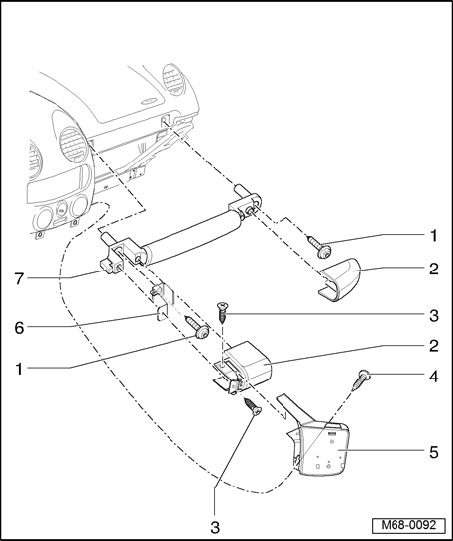

- Remove bolts - 3 - and - 4 - from cell phone retainer.







- Remove cell phone retainer - 5 -.
- Pull off covers - 2 -.
- Remove bolts - 1 - and remove left retaining plate - 6 -. Remove grab handle - 7 - from instrument panel.

Installing
- Installation is performed in the reverse order of removal.
