Glove Compartment Lock Cylinder: Service and Repair

Lock Cylinder For Glove Compartment, Removing And Installing

Removing







- Protect marked area of flap - 1 - and - 2 - from damage, e.g. cover with tape.
- To prevent damage to glove compartment, wrap marked area of pliers - 3 - with adhesive tape.

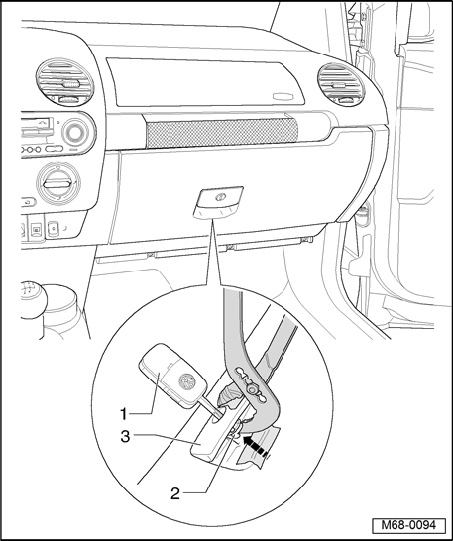

- Insert ignition key - 1 - into lock cylinder - 2 -.







- Using pliers, push lock cylinder in - direction of arrow - out of button - 3 -.

Installing
- Press lock cylinder into button opening until it engages audibly.
