Armrest Lid, Removing and Installing

Armrest Lid, Removing And Installing

Removing

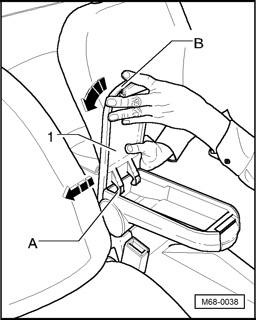

- Open armrest lid - 1 -.
- Press armrest lid - 1 - in - direction of arrow B -.

Installing
- Installation is performed in the reverse order of removal.







- Check retainers - A - for damage.
