Bonded Rubber Bushings For Subframe, Removing and Installing

Bonded rubber bushings for subframe, removing and installing

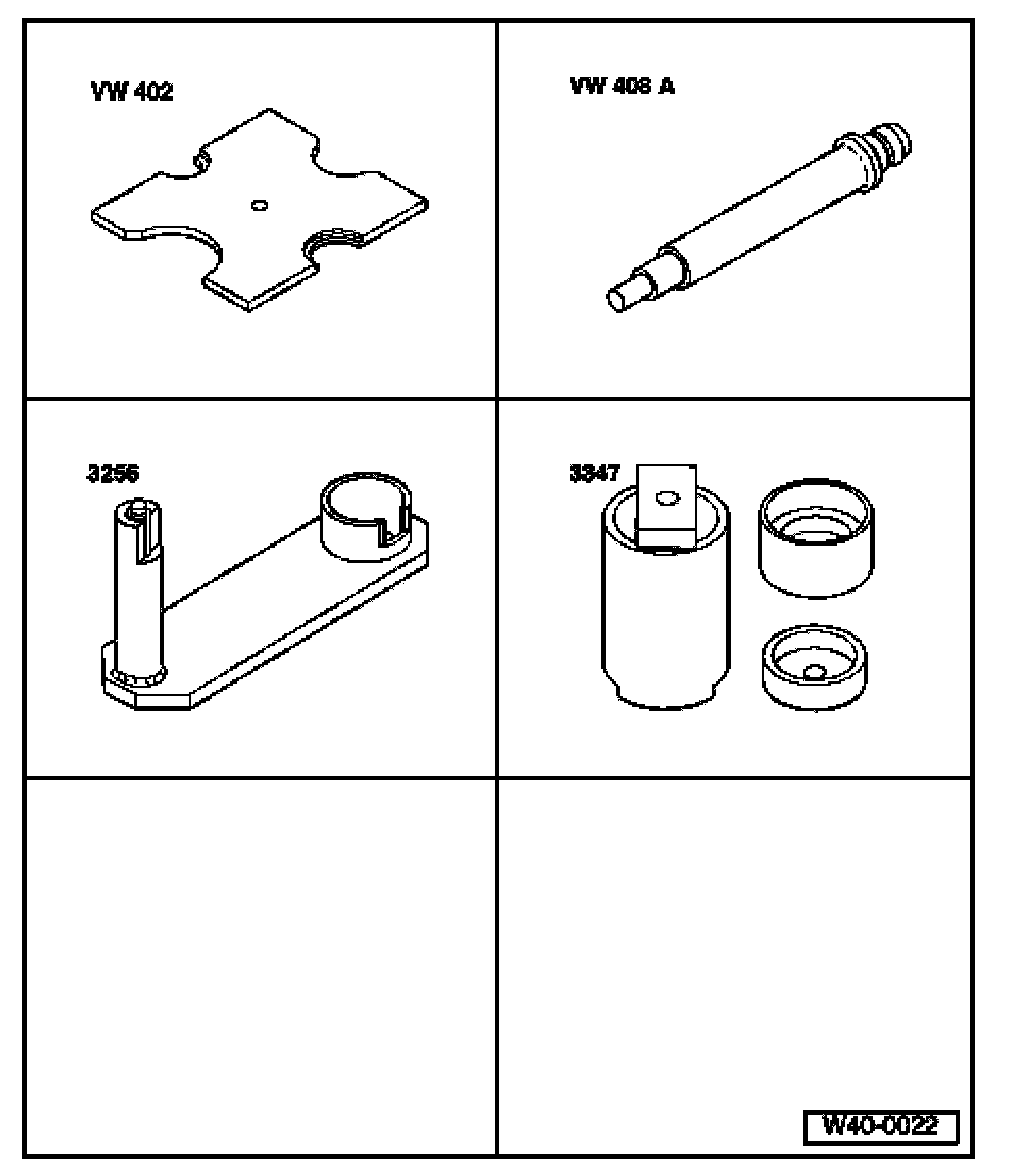

Special tools and equipment
^ VW402 Thrust plate
^ VW408A Punch
^ 3256 Vibration damper bracket
^ 3347 Installation device

Removing and installing the bonded rubber bushings is only possible with subframe removed. Removing subframe, Refer to Body and Frame, Subframe, Service and Repair

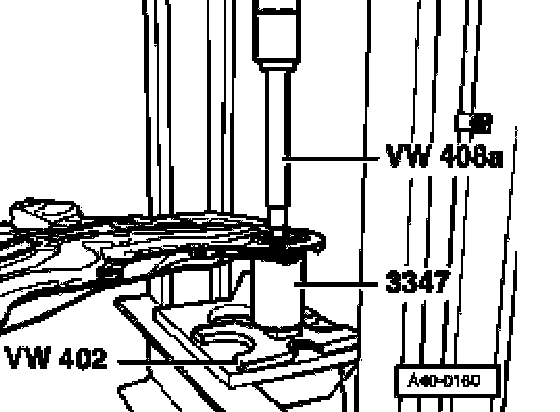

Pressing out bonded rubber bushing





Pressing in bonded rubber bushing

Notes:
^ Use lubricant to press in the bonded rubber rubber mount e.g. lubricant G 294 421 A1
^ Never use grease!

CAUTION:

Part numbers are listed here for reference only. Always check with your Parts department for the latest information.
