Gas-Filled Strut, Removing

Gas-filled Strut, Removing







- Support rear lid.

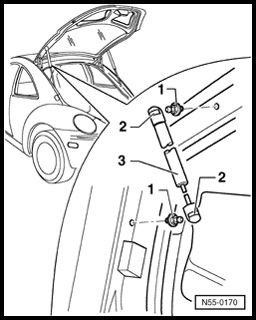

- Lift securing clip - 2 - using a screwdriver and remove gas-filled strut from ball stud - 1 -

NOTE: When re-using gas-filled strut, securing clip - 2 - must not be removed completely out of ball socket, otherwise the securing clip may be damaged.

1. Combi ball stud, 21 Nm
2. Securing clip
3. Gas-filled strut
