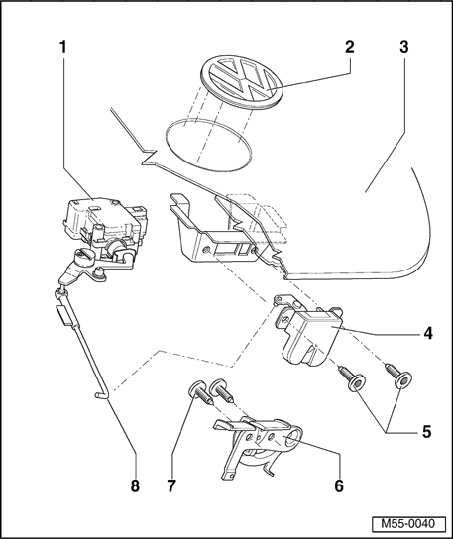

Rear Lid Lock, Removing And Installing 09.01 > (USA)







1 - Rear lid release motor
2 - VW emblem
3 - Rear lid
4 - Lock
- Removing:
- Remove rear lid trim
- Disconnect connector on lock.
- Unhook operating rod, remove bolts and remove rear lid lock.

5 - Bolt
- 23 Nm

6 - Closure plate
- Adjusting - within elongated holes
- Removing:
- Remove cover for loading edge
- Remove bolts.

7 - Bolt
- 23 Nm

8 - Operating rod
