Upper Rear Lid Trim, Removing and Installing

Upper Rear Lid Trim, Removing And Installing

Removing
- Lower trim, removing.







- Remove Phillips-head bolts - 2 - (2x).

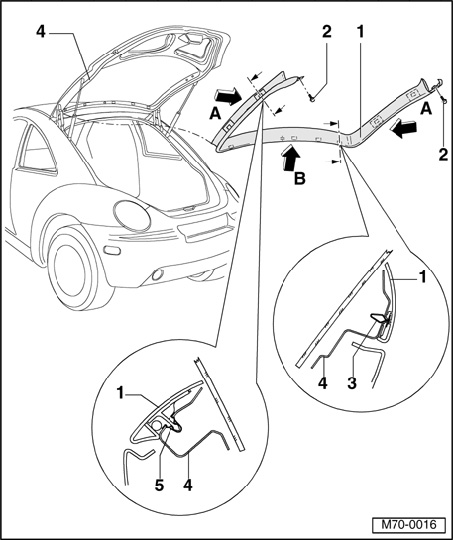

- Remove trim - 1 - along sides first - arrows A - and then along top - arrow B -.

Installing
- Installation is performed in the reverse order of removal.

NOTE: Before assembling trim - 1 -, check condition and seating of clips - 3 - and - 5 - on trim or in lid. Replace clips if necessary.
