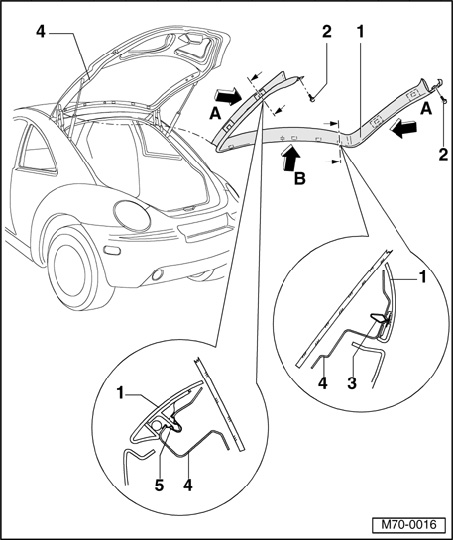

Upper Rear Lid Trim - Assembly Overview

Upper Rear Lid Trim - Assembly Overview







1 - Upper trim
2 - Phillips-head screw
- 2x

3 - Clip
- Inserted in trim

4 - Rear lid
5 - Clip
- For pin at trim
