Rear Lid Trim, Removing and Installing (Convertible)

Rear Lid Trim, Removing And Installing (Convertible)

Removing

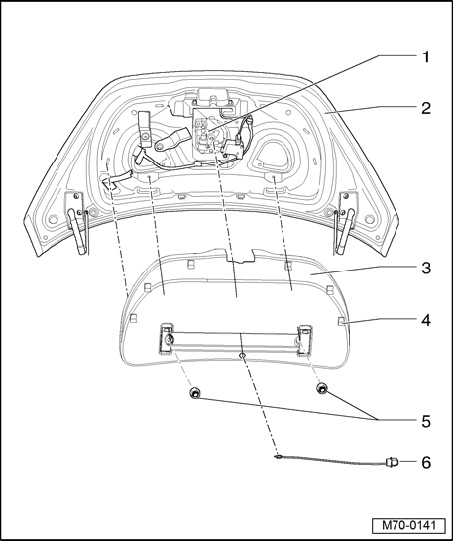

- Remove nuts - 5 - from luggage compartment lid - 2 -.







- Remove trim - 3 - from lower lid - 2 - and on sides.

For vehicles 12.03 -->

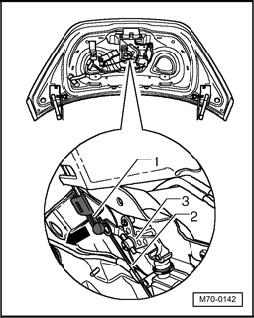

- Loosen black plastic pin - 1 - of lid lock - 3 - in - direction of arrow -.
- Loosen black plastic plug with cable - 2 - of lid lock - 3 - in - direction of arrow -.







- Remove black plastic plug with cable - 2 - from trim - 1 - in - direction of arrow -.

Installing
- Installation is performed in the reverse order of removal.

NOTE: Before installing trim, check condition and seating of clips and plastic plug with cable. Replace clips if necessary.
