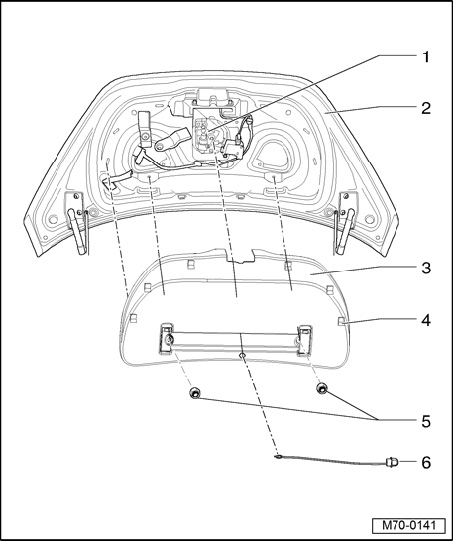

Rear Lid Trim - Assembly Overview (Convertible)

Rear Lid Trim - Assembly Overview (Convertible)







1 - Lid lock
2 - Tailgate
3 - Rear lid trim
4 - Clip
- 6x

5 - Nut
- 2x

6 - Plug with plastic cable
- Vehicles 12.03 -->
