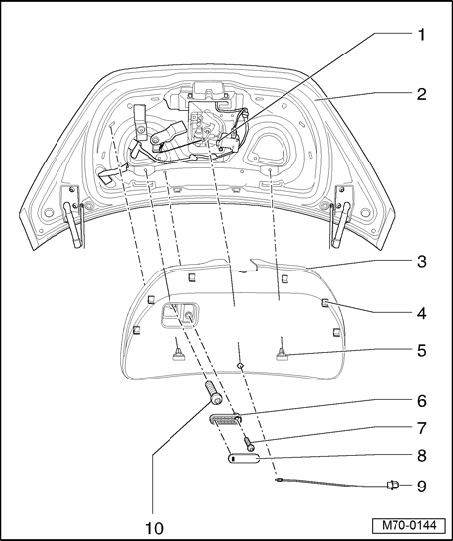

Rear Lid Trim - Assembly Overview (Convertible USA)

Rear Lid Trim - Assembly Overview (Convertible USA)







1 - Lid lock
2 - Tailgate
3 - Rear lid trim
4 - Clip
- 6x

5 - Clip
- 2x
- Vehicles --> 12.04

6 - Grip piece
7 - Bolt
8 - Cover
9 - Plug with plastic cable
- Vehicles 12.03 -->

10 - Bolt
