Rear Lock Carrier Cover, Removing and Installing (Convertible)

Rear Lock Carrier Cover, Removing And Installing (Convertible)

Removing
- Remove luggage compartment floor covering.

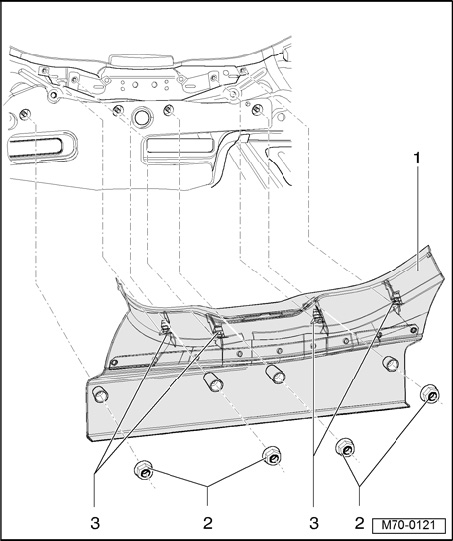

- Remove nuts - 2 - (4x).







- Remove rear lock carrier cover - 1 - in area of spring clips - 3 - (4x).
- Carefully unhook hooks on outer edges of trim.

Installing
- Installation is performed in the reverse order of removal.

NOTE:
- Before installing, check spring clip - 3 - and replace if necessary.
- After assembling trim, make sure seal is properly fitted.
