Rear Lock Carrier Cover, Removing and Installing

Rear Lock Carrier Cover, Removing And Installing

Removing

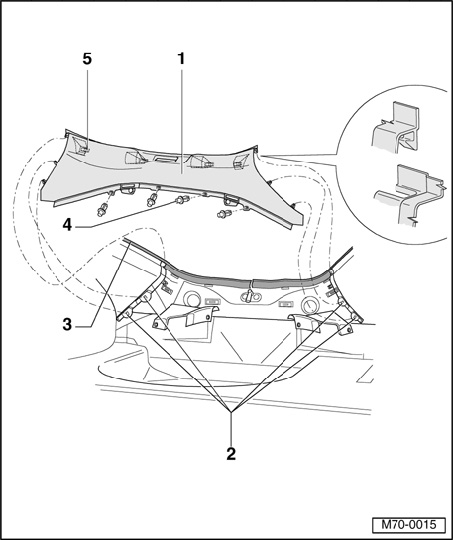

- Loosen storage area floor cover from trim (two twist locks).







- Press expanding clip pins - 4 - (4x) through and remove expanding clips.







- Remove loading edge cover - 1 - in area of spring clips - 2 - (4x).
- Carefully unhook hooks on outer edges of trim.
- Remove lock carrier cover - 1 - upward from lock carrier.

Installing
- Installation is performed in the reverse order of removal.







NOTE:
- Before installing, check clips - 5 - (4x) and replace if necessary.
- After assembling trim, make sure seal is properly fitted.
