Rear Lock Carrier Cover - Assembly Overview (Convertible)

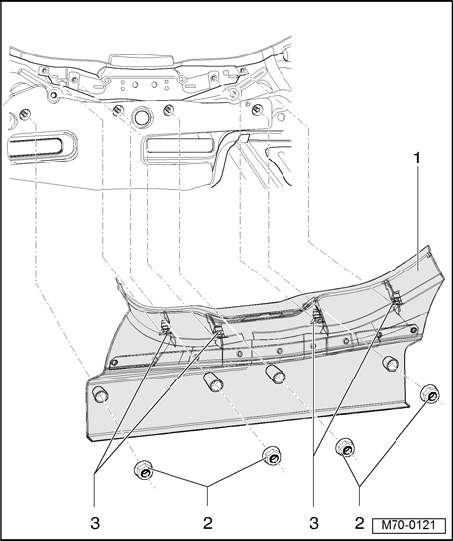

Rear Lock Carrier Cover - Assembly Overview (Convertible)

1 - Rear lock carrier cover
2 - Nut
- 4x

3 - Spring clamp
- 4x
