Rear Lid, Assembly Overview (Convertible)

Rear Lid, Assembly Overview (Convertible)

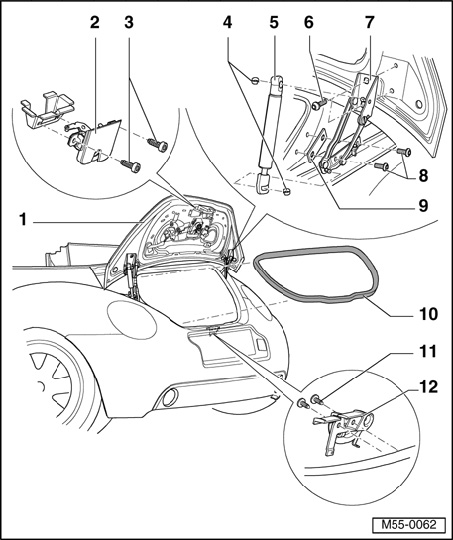

Assembly overview







1 - Rear lid
2 - Lock
3 - Bolt
- 23 Nm

4 - Securing clip
5 - Gas-filled strut
- Venting gas

6 - Bolt
- 20 Nm

7 - Hinge
8 - Bolt
- 20 Nm

9 - Foil
10 - Gasket
11 - Bolt
- 23 Nm

12 - Closure plate
- Adjusting - within elongated holes
