Rear Lid Carrier With Micro Switch, Removing and Installing (Convertible)

Rear Lid Carrier With Micro Switch, Removing And Installing (Convertible)

Removing







- Remove rear lid trim

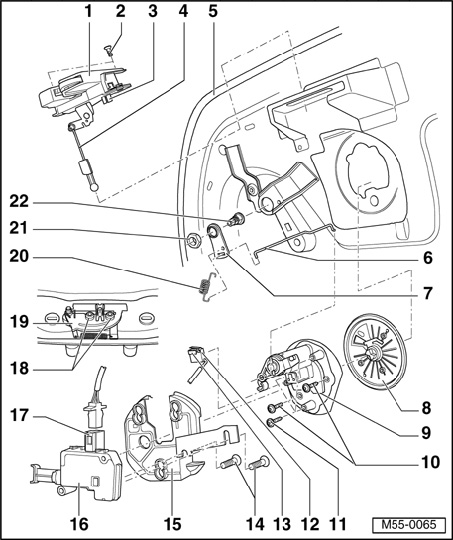

- Unclip pull rod - 4 - and - 6 - (USA).
- Disconnect harness connector - 17 -.
- Disconnect harness connector for micro switch - 12 - and unclip connector from retaining plate.
- Remove bolts - 11 -.
- Remove retaining plate - 15 -.
- Remove carrier with micro switch

Installing
Installation is performed in the reverse order of removal.
