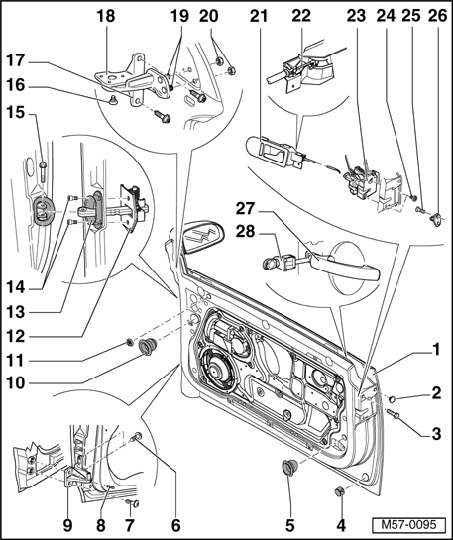

Front Door, Assembly Overview (Convertible)

Front Door, Assembly Overview (convertible)

NOTE: Always replace door hinge bolts (except - 6 - and - 16 -) and pin - 19 - after loosening.







1 - Door
2 - Cover cap
3 - Bolt
- 20 Nm
- Insert with locking fluid D 185 400 A2

4 - Buffer
5 - Grommet
6 - Bolt
- 20 Nm + 1 / 4 turns (90°) turn
- Always replace bolts after loosening

7 - Bolt
- 20 Nm + 1 / 4 turns (90°) turn
- Always replace bolts after loosening

8 - Set screw
- 13 Nm

9 - Door hinge
- Hinge is divided

10 - Grommet
11 - Grommet
12 - Door arrester
13 - Cover
14 - Bolt
- 10 Nm

15 - Pin
- 4.5 Nm

16 - Bolt
- 20 Nm + 1/4 turns (90°) turn
- Always replace bolts after loosening
- Loosen with special tools 3320 and 3220/2 and tighten

17 - Bolt
- 27 Nm

18 - Door hinge
- Hinge is divided

19 - Pin
- Always replace pins after loosening

20 - Nut
- 20 Nm + 1/4 turns (90°) turn
- Always replace door hinge pins after loosening

21 - Interior door mechanism
22 - Hood release cable
23 - Door lock
24 - Bolt
- 20 Nm
- Insert with locking fluid D 185 400 A2

25 - Bolt
26 - Closure plate
27 - Door handle with backing plate
28 - Door lock cylinder
