Display Group 016

Break Down Of Display Content For Display Group Number 016

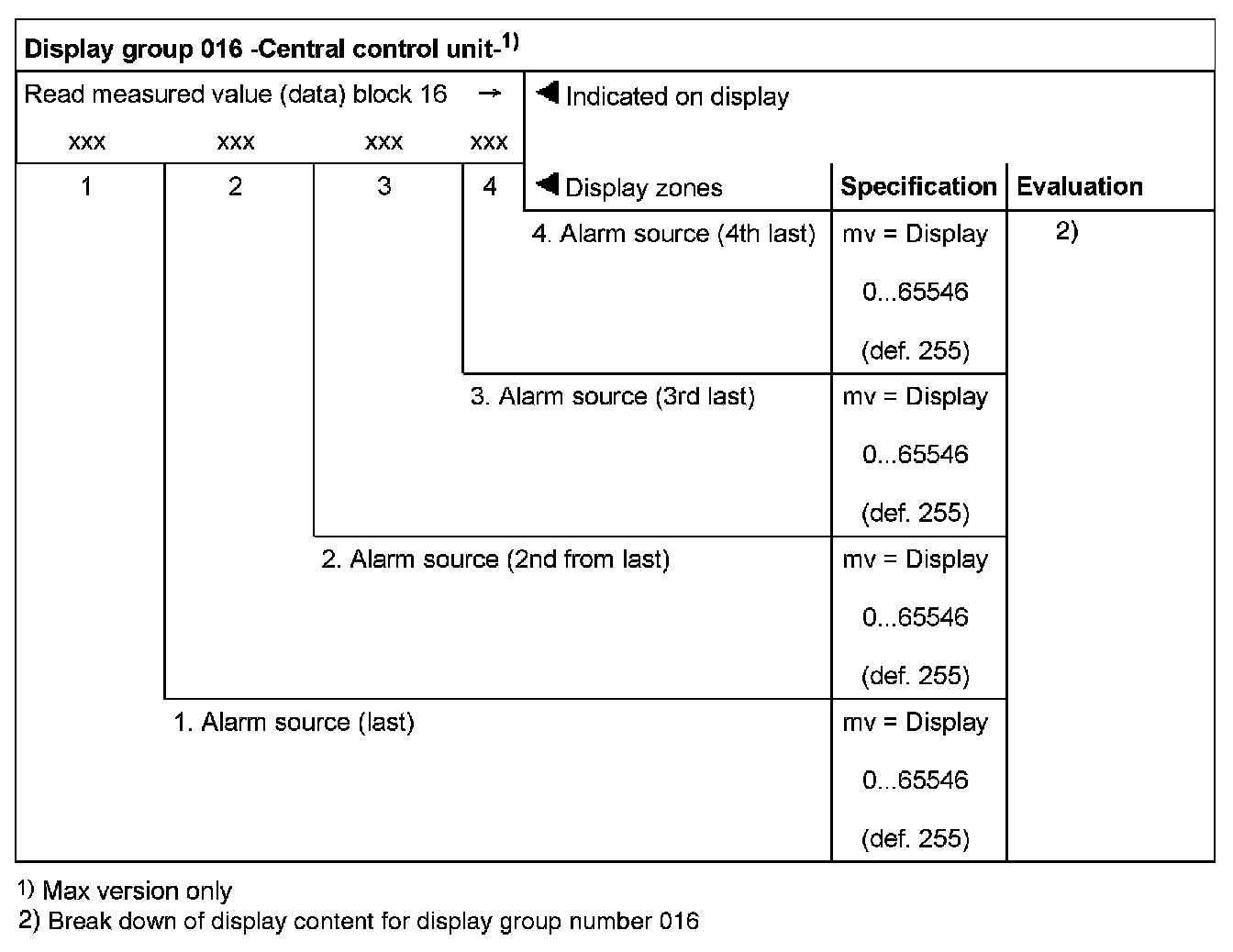

Display Group 016:

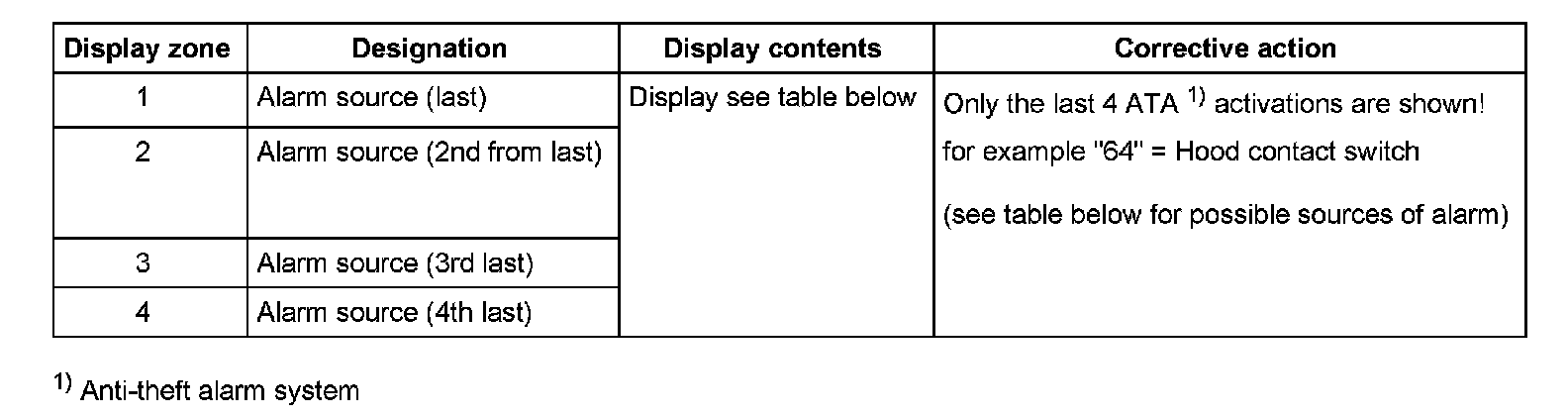

Display Zone 1 - 4:

Possible sources of alarm Display
Trunk lid/tailgate contact switch 1
Front passenger rotary latch switch 8
Ignition 16
Immobilizer 17
Interruption intelligent horn 18
Interior monitoring 32
Hood contact switch, radio 64
Driver's rotary latch switch 128
No alarm 255
