Display Group 011
Display Group 011
Break Down of Display Content For Display Group Number 011

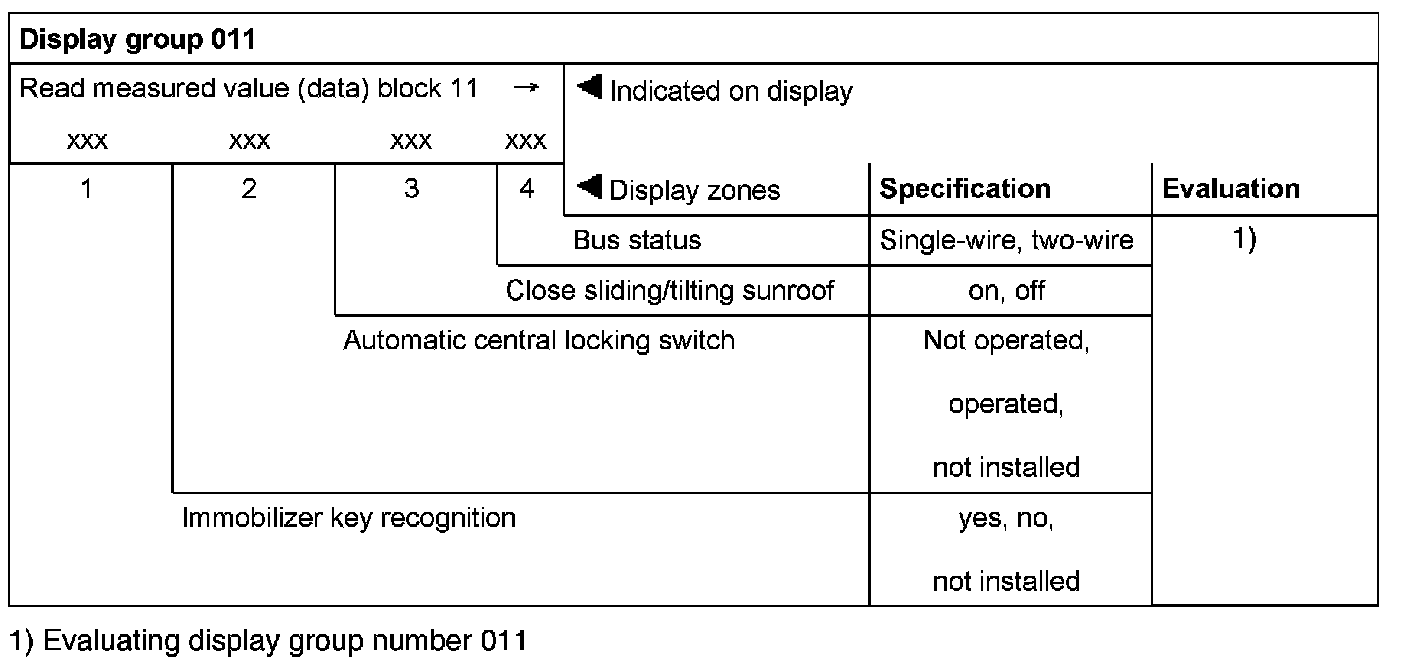

Display Group 011:

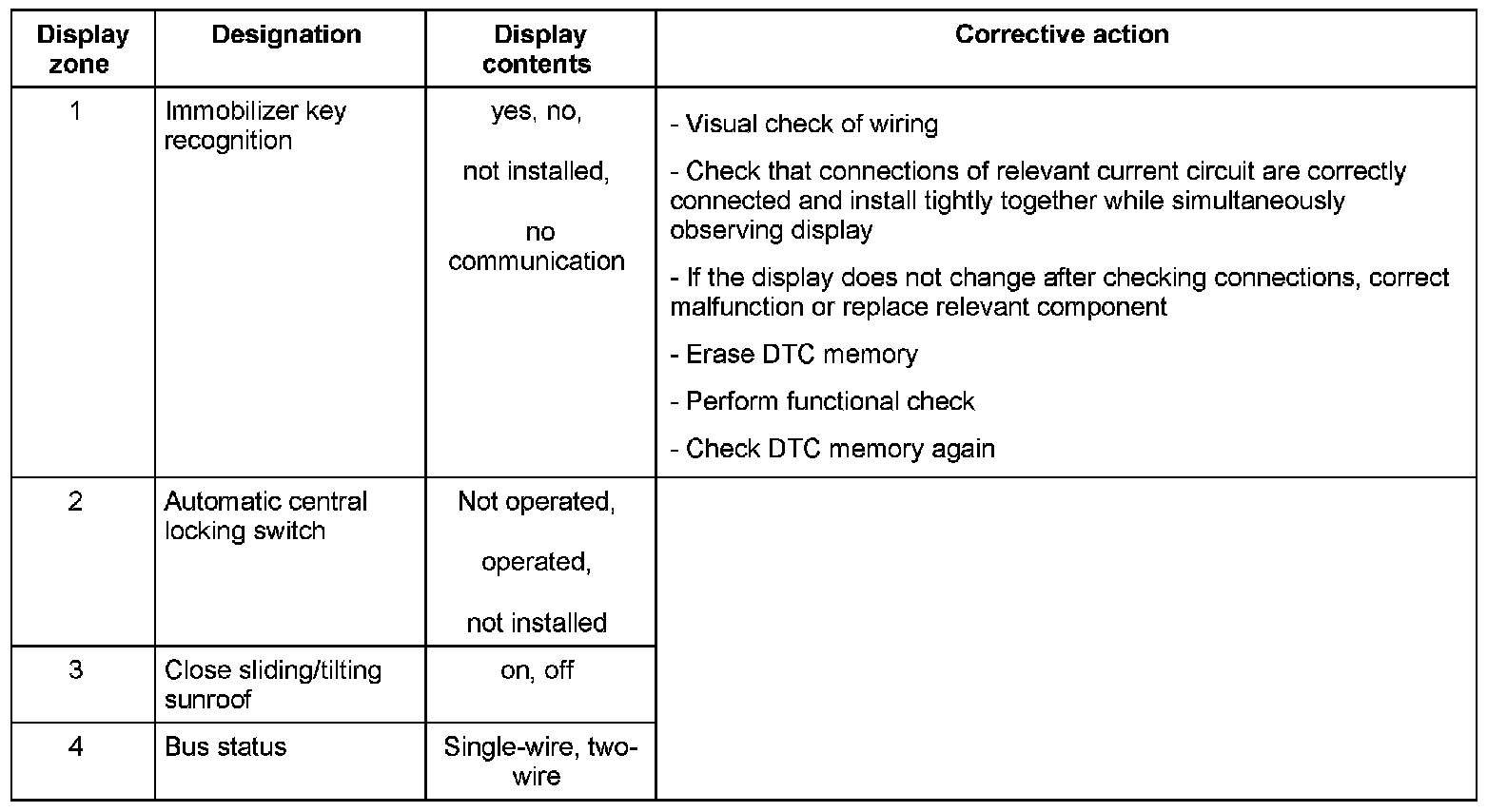

Evaluating display group number 011
Display 1 - 4:
