New Beetle Convertible (1Y1) L4-1.8L Turbo (AWV)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Body Control Systems
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
>>
Convenience System With Power Windows
>>
Scan Tool Testing
>>
Measured Value Blocks (Function 08)
>>
Evaluating Measured Value Blocks
>>

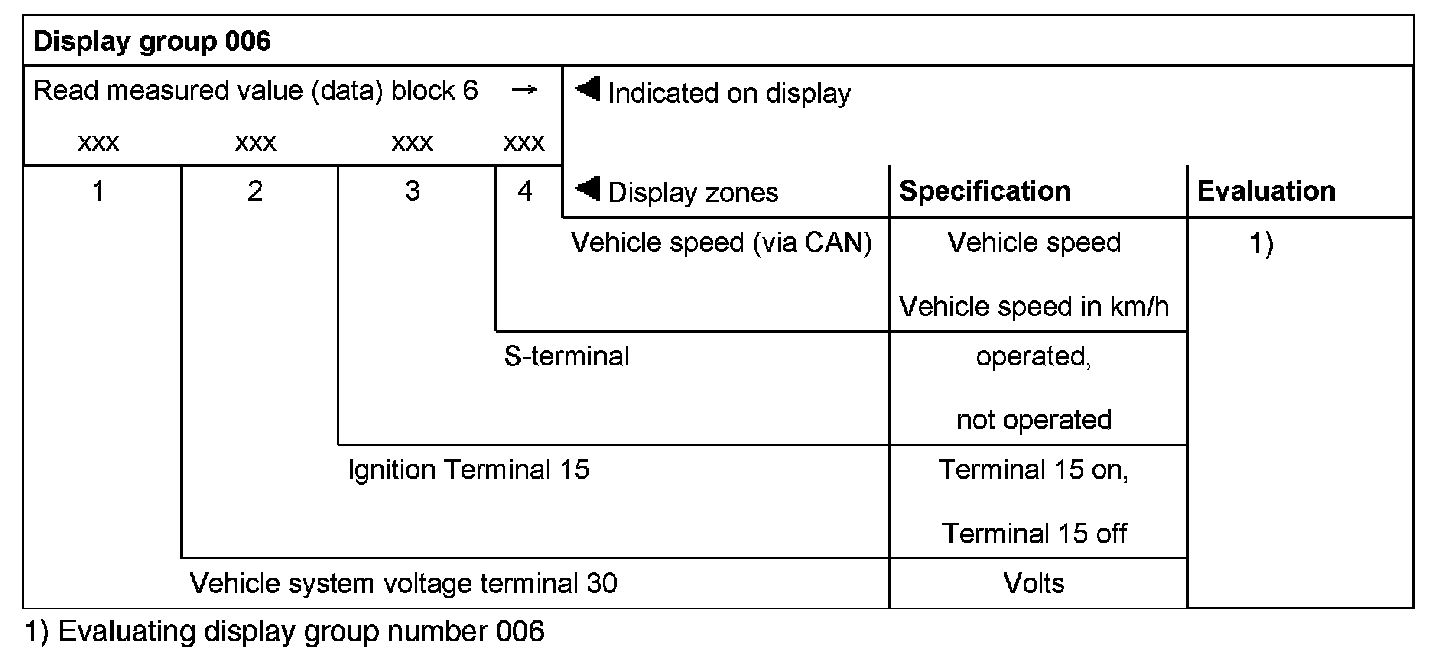

Display Group 006
Display Group 006

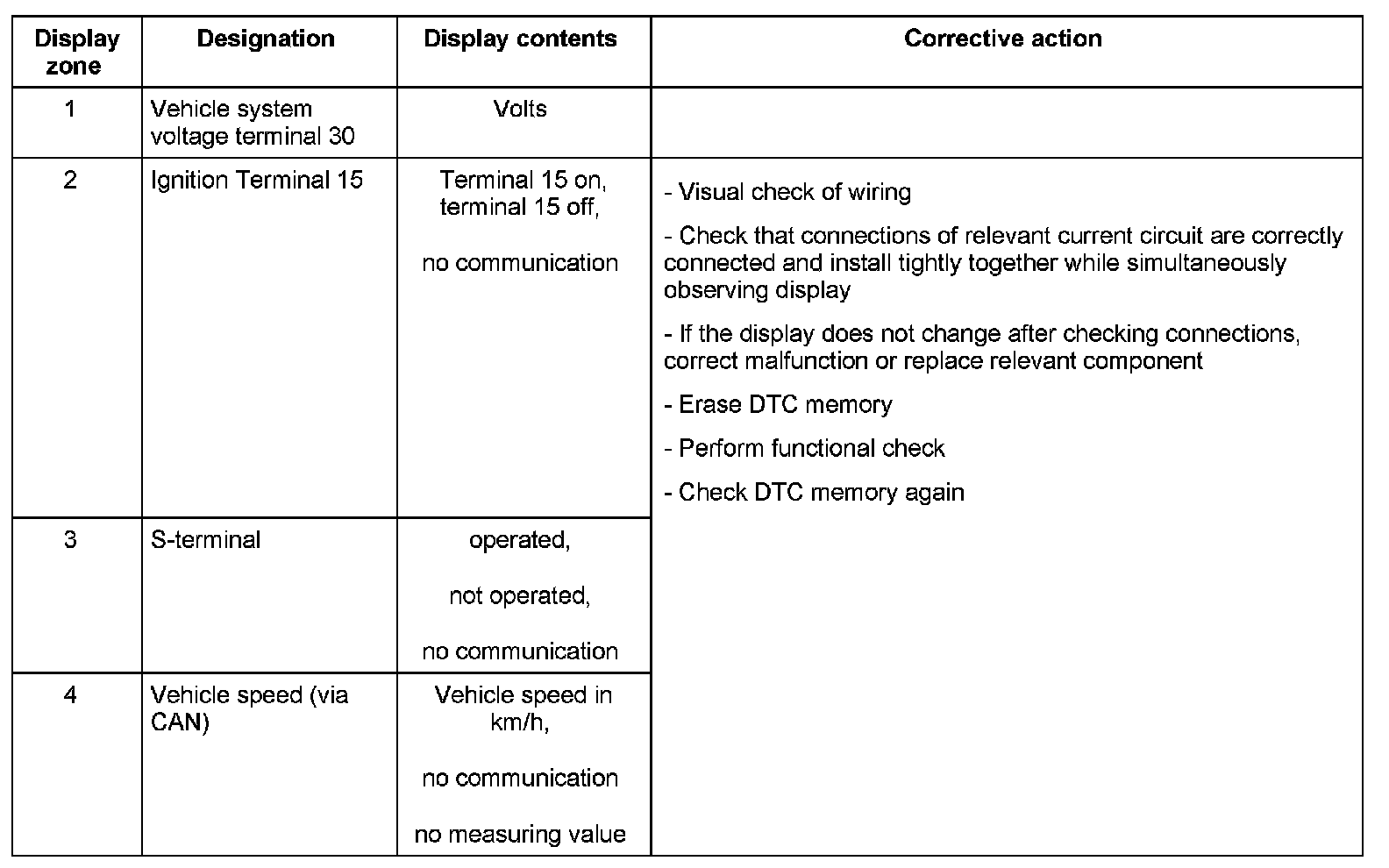

Break Down Of Display Content For Display Group Number 006
Display Group 006:
Evaluating display group number 006
Display Zone 1 - 4:
