Display Group 003
Display Group 003

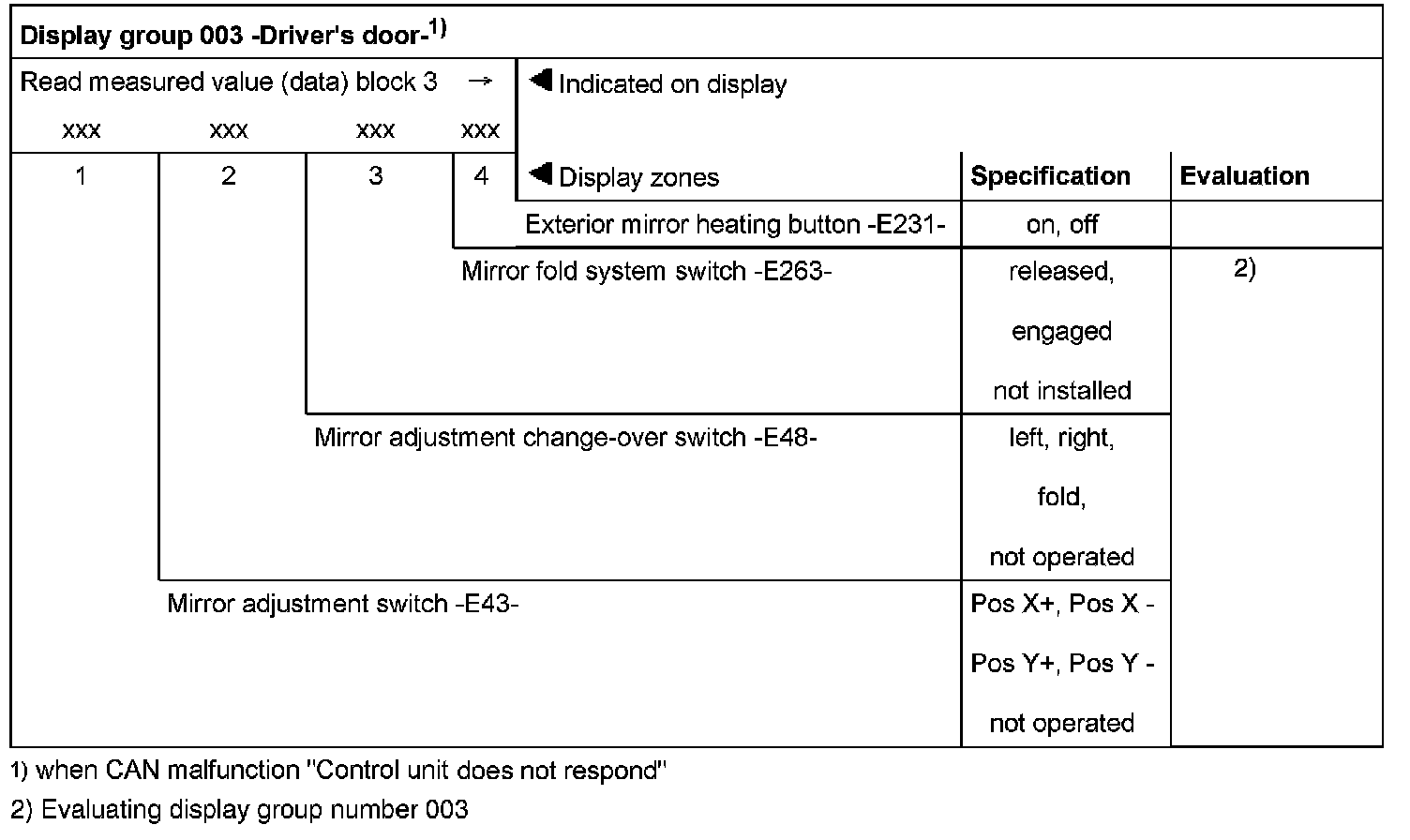

Break Down Of Display Content For Display Group Number 003
Display Group 003:

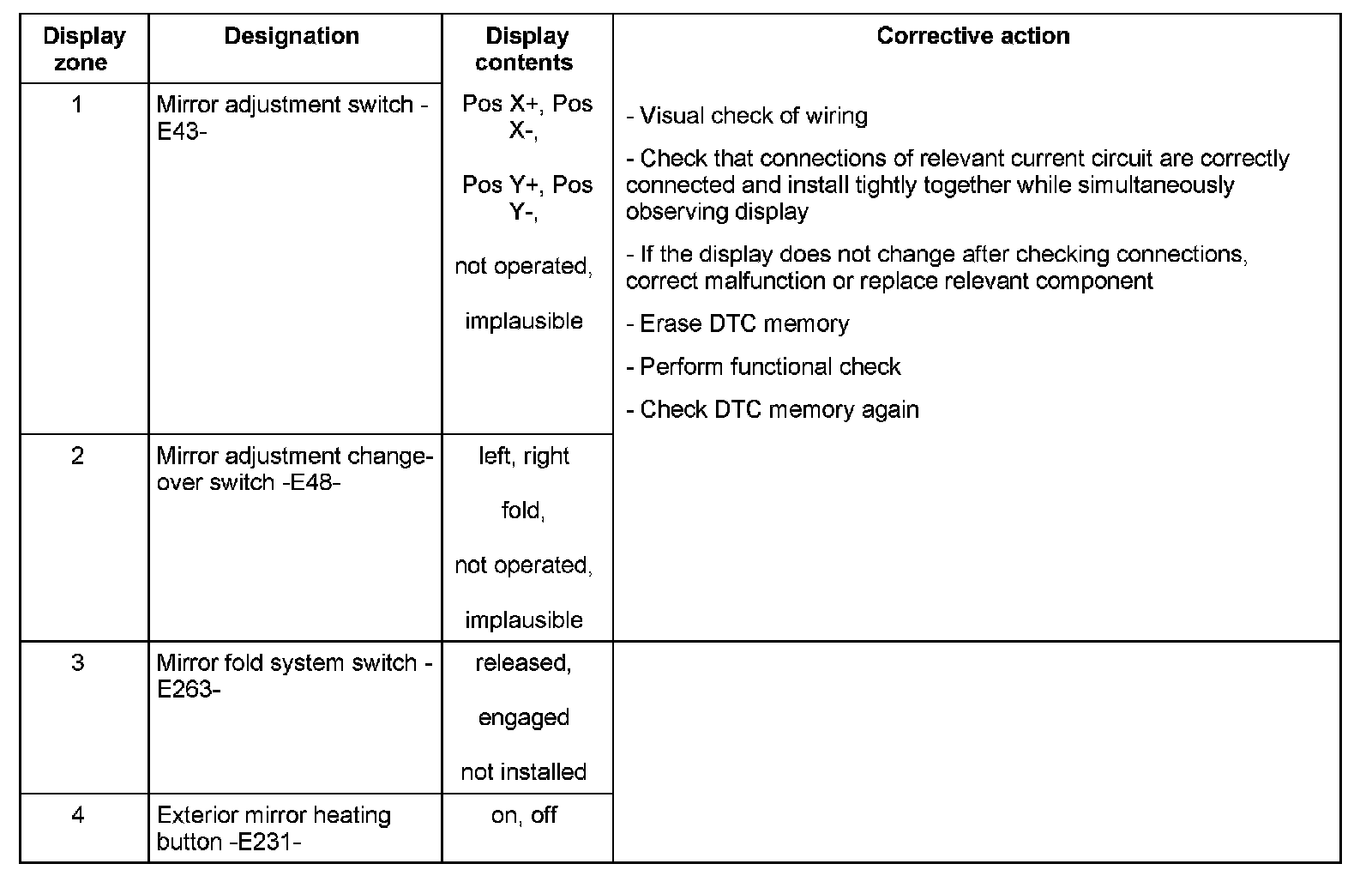

Evaluating display group number 003
Display Zone 1 - 4:
