New Additional Key, Adapting

New Additional Key, Adapting

- Insert a mechanically correct (old) ignition key in the ignition lock.
- Switch on ignition.
- Using a new (not taught / not learned) key, mechanically lock the vehicle (e.g. drivers door) and then operate one of the remote control buttons on key.
- After a pause of more than one second, operate one of the remote control buttons on key a second time.
- The adaptation sequence is complete and will be confirmed by the vehicle by a feedback horn beep.

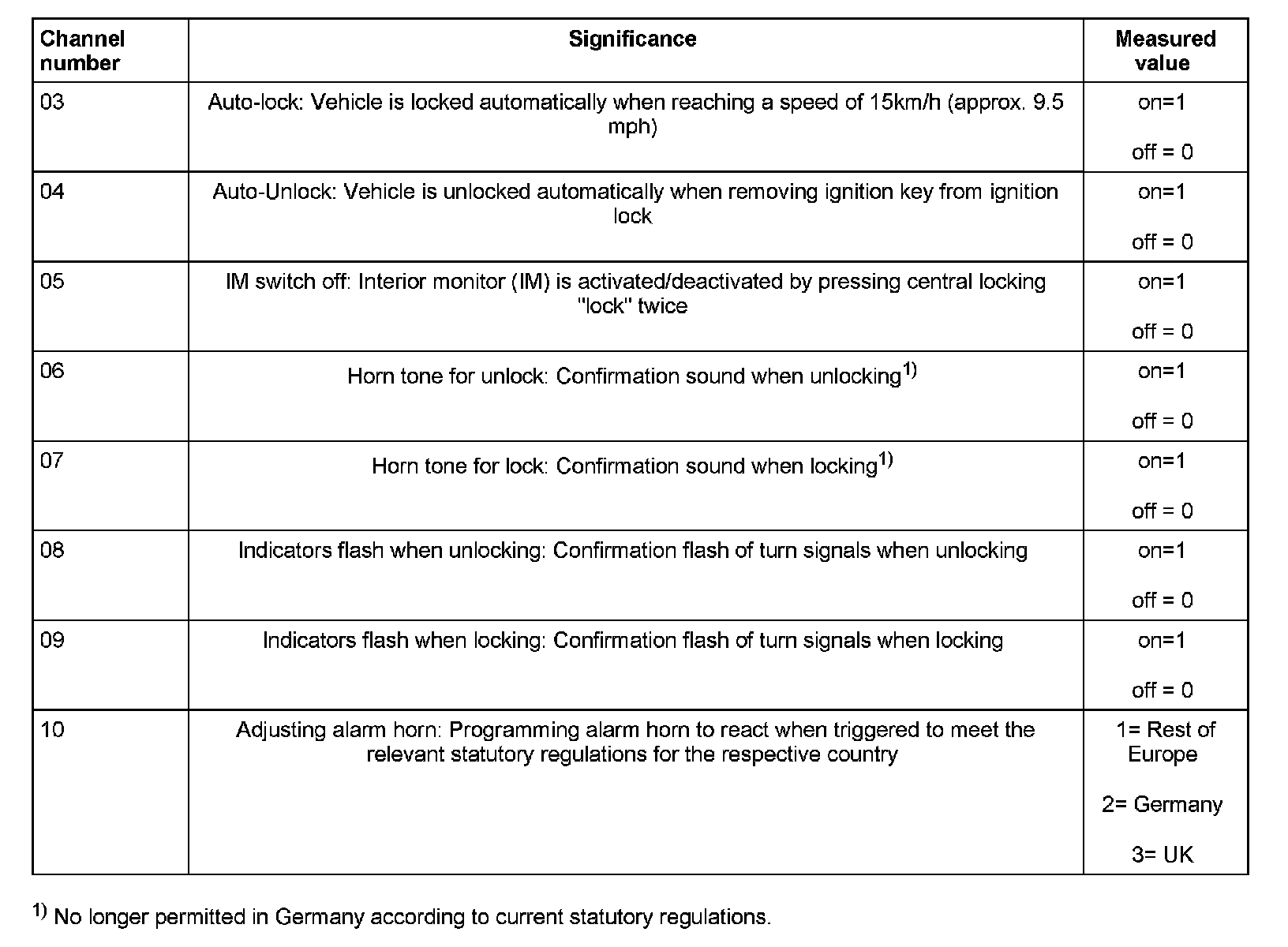

The various functions listed in the table can be called up by selecting channel numbers 03...10 and adapted.

Comfort System (vehicles with power windows) functional variations







The adaption shown here is only an example.

Indicated on display:

Rapid data transfer HELP
Select function XX

- Press buttons -1- and -0- (10 selects the "Adaptation" function).

Indicated on display:

Rapid data transfer Q
10 - Adaptation

- Confirm entry with -Q- button.

Indicated on display:

Adaptation
Enter channel number XX

- Press buttons -0- and -8- (channel number 08 switches the turn signals on or off when unlocking).

Indicated on display:

Channel 8 Adaptation 1 ->
Unlock Flashing on <-1 3->

- Press -> button.

Indicated on display:

Channel 8.....Adaptation 1 ->
Enter adaption value XXXXX

- Press -> button.
- Press button -0- five times (e.g. 00000).

Indicated on display:

Channel 8.....Adaptation 0 Q
Enter adaption value 00000

- Confirm entry with -Q- button.

Indicated on display:

Channel 8 Adaptation 0 Q
Unlock Flashing off <-1 3->

- Confirm entry with -Q- button.

Indicated on display:

Channel 8 Adaptation 0 Q
Save amended value?

- Confirm entry with -Q- button.

Indicated on display:

Channel 8 Adaptation 0 ->
Amended value is saved

- Press -> button.

Indicated on display:

Rapid data transfer HELP
Select function XX

- Press buttons -0- and -6- to end the output.

Indicated on display:

Rapid data transfer Q
06 End output

- Confirm entry with -Q- button.

Indicated on display:

Rapid data transfer HELP
Enter address word XX

- Switch off ignition and disconnect diagnostic connection.
