Display Group 001
Display Group 001

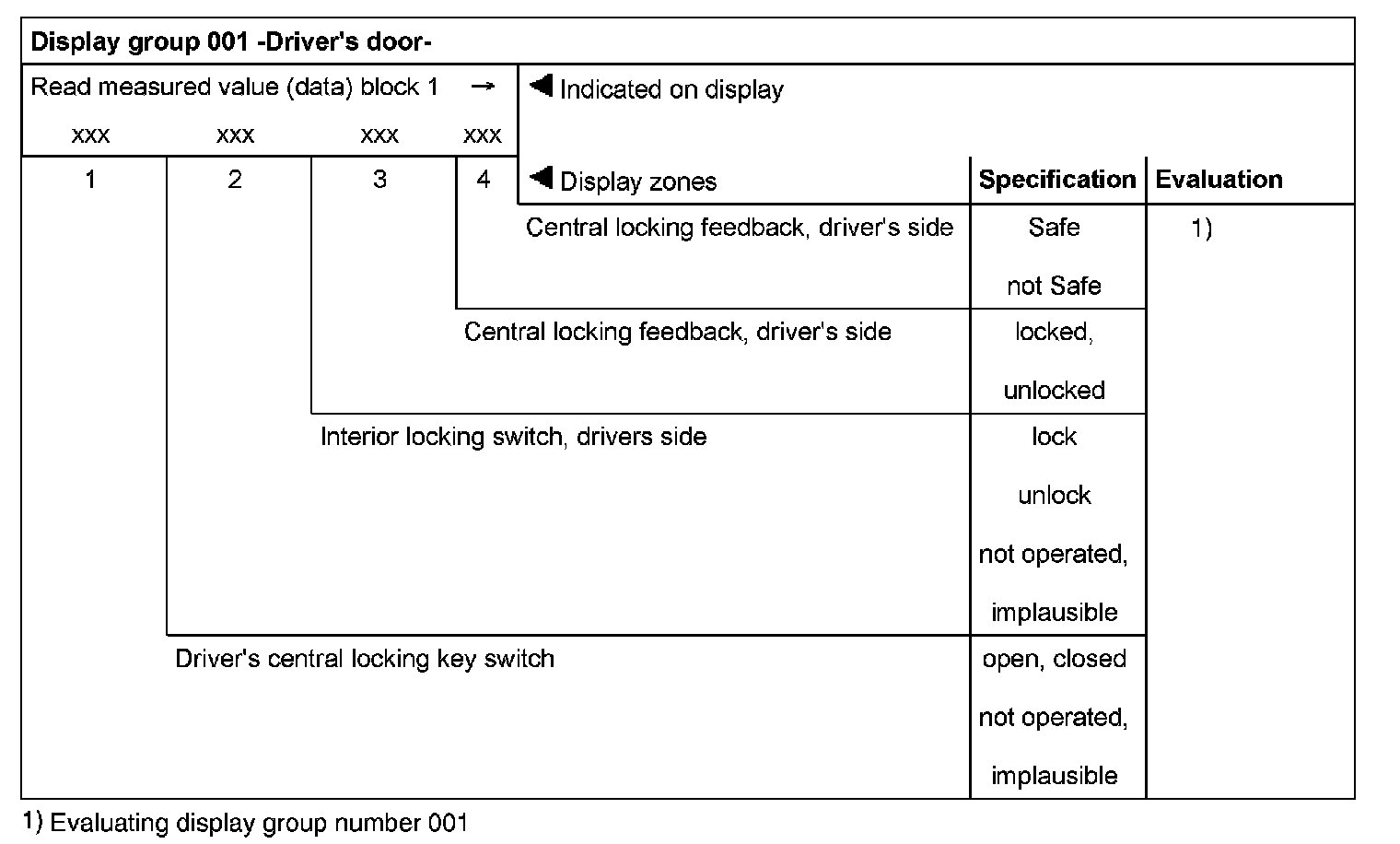

Break Down Of Display Content For Display Group Number 001
Display Group 001:

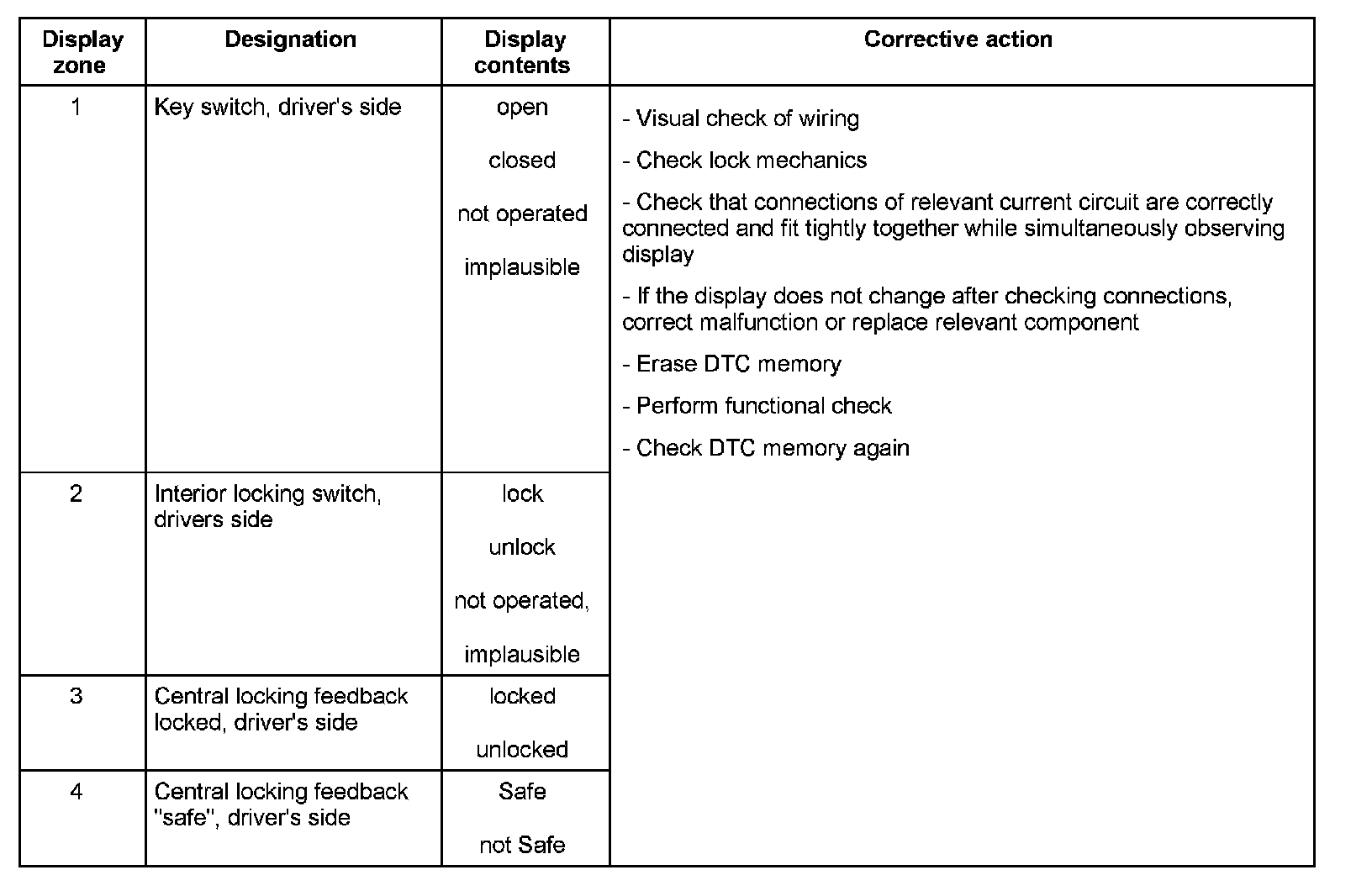

Evaluating Display Group Number 001
Display Zone 1 - 4:
