Audio System - Radio Inop With iPod(R) Adapter Installed
91 10 10April 1, 2010
2022750
Vehicle Information
iPod(R) / Satellite Radio Inoperative with Accessory ISA iPod Adapter Installed
Tip:
This technical bulletin only applies to units that had ISA kit part number 1K0051510A installed.
Technical Background
Due to harness length, CanBus communication between radio & external satellite module is lost.
Production Solution
Not applicable
Service
^ Verify that accessory kit 1K0051510A is installed. This can be recognized by a 4 meter coil of harness looped underneath the passenger dash.
^ Disconnect negative battery cable
^ Disconnect the two accessory harness connectors from the external satellite module
^ Connect the factory harness directly to the external satellite module
^ Reconnect negative battery cable
^ Place radio in satellite mode. If subscription is deactivated, place on channel 0.
Does satellite radio operation work?
No:
This technical bulletin does not apply. The problem is with the factory wiring harness or the external satellite module.
Yes:
^ Disconnect negative battery cable
^ Disconnect and remove the accessory harness from vehicle
^ Install accessory harness 1C0051710 in vehicle
^ Connect all connectors
^ Reconnect the negative battery cable
^ Check satellite radio and iPod operation
Tip:
For testing purposes, the iPod battery must be charged. The ISA kit only supports 12 volt charging.
For more information see ElsaWeb for the latest Media Device Overview technical bulletin.
If operation still does not resume, start a VTA ticket by selecting "Technical Assistance" tab in ElsaWeb and follow instructions to obtain an access code.

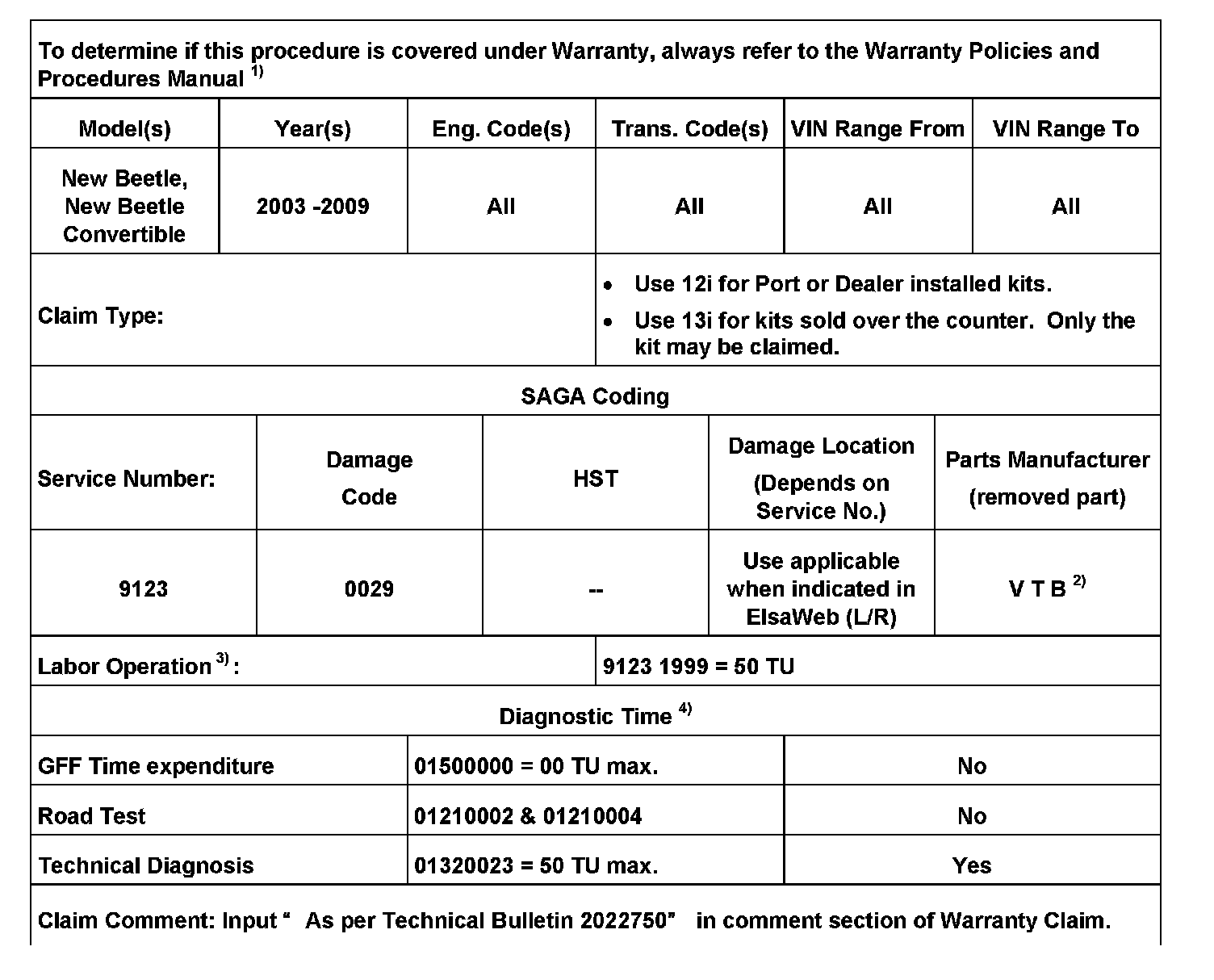

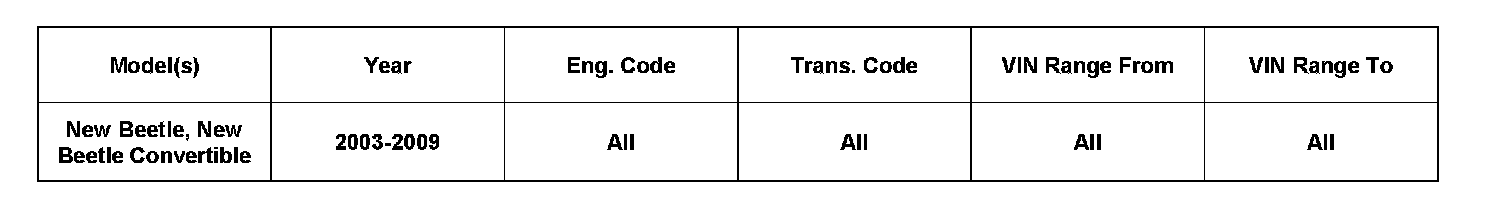

Warranty

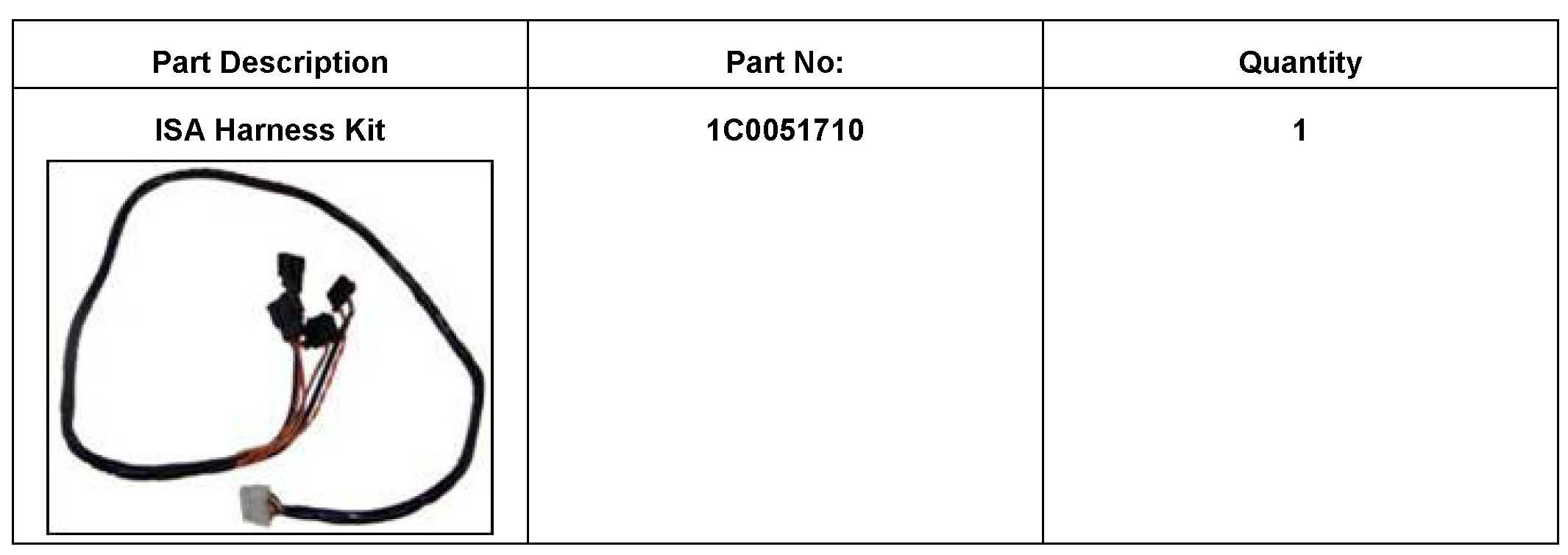

Required Parts and Tools.
No Special Tools required.
Additional Information
All part and service references provided in this Technical Bulletin are subject to change and/or removal.
Always check with your Parts Dept. and Repair Manuals for the latest information.
