Speakers In Inner Plenum Chamber Cover (Monsoon)

Domed Treble And Bass Loudspeakers In Inner Plenum Chamber Cover, Removing And Installing (Monsoon Sound System)

Removing

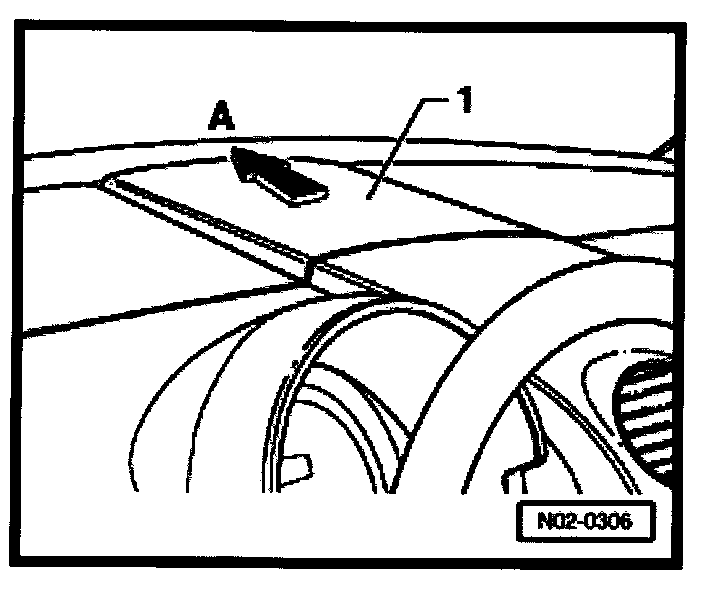

- Press dash panel center cover -1- in direction of arrow -A- and take off.

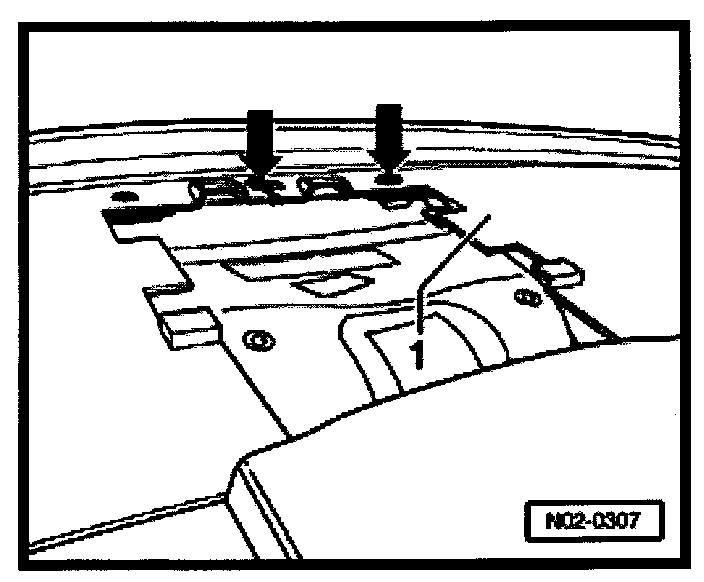

- Remove the screws -arrows- from the respective side.

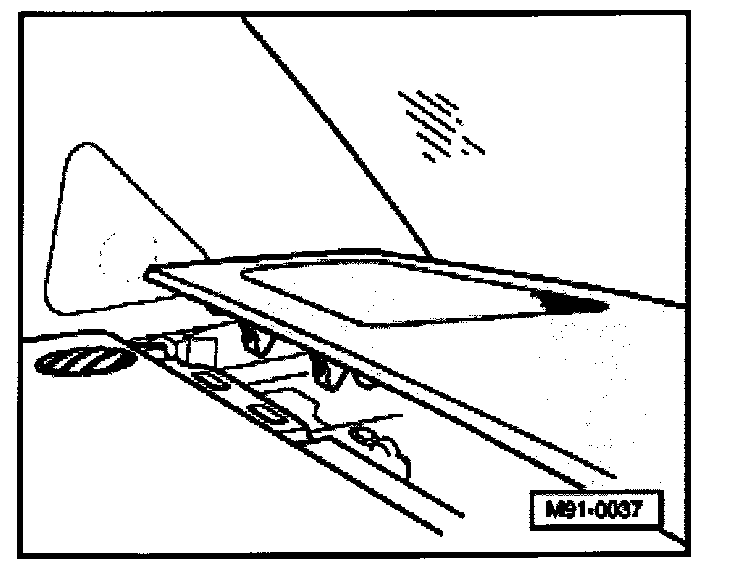

- Lift inner plenum chamber cover slightly.

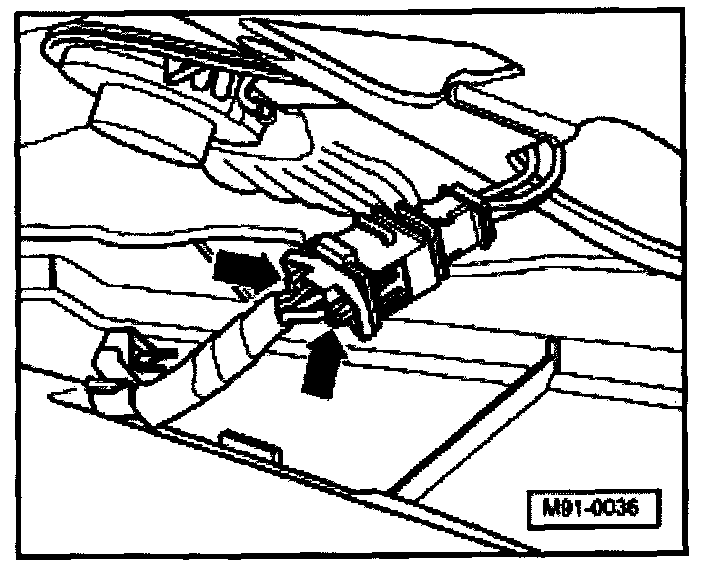

- Disconnect harness connector (arrows).

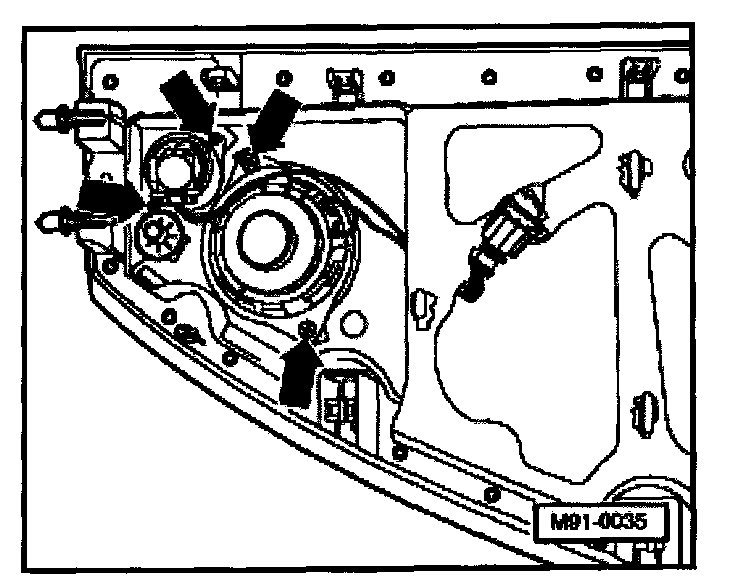

- Carefully drill out rivets (arrows) with suitable drill and remove loudspeaker.


NOTE: Installation position.


Installing

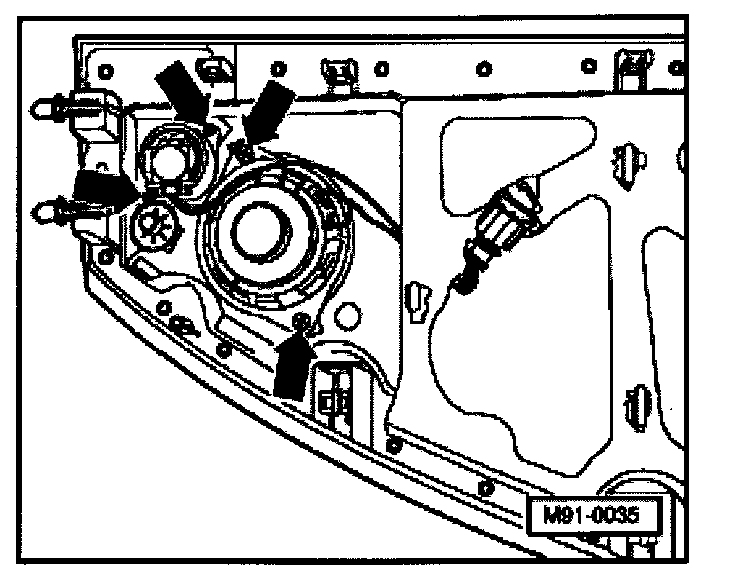

- Fit loudspeaker again and tighten screws (arrows).
- Tightening torque: 3 Nm (27 in lb)

Further installation is basically reversal of the removal sequence.
