Radio, "Premium V"




Radio, "Premium V

Installed from start of production

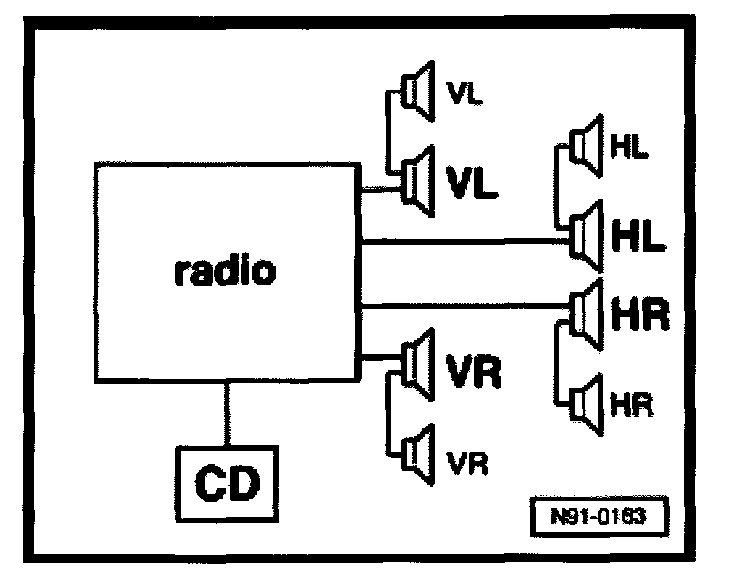

VL = Left front
HL = Left rear
VR = Right front
HR = Right rear

The radio system consists of the receiver/tape unit and speakers located in the front doors and rear side panels.

A 168 mm low-range/bass speaker is located in the lower portion of each front door and rear side panel.

High range/treble speakers (domed tweeters) are installed in each A-pillar.

A CD changer is available as optional equipment.

CD Changer Locations:
- through 07.02 production: in luggage compartment, left.
- from 08.02 production: in center console under armrest.

The system uses an amplified roof mounted antenna
