Radio, "Premium V - Monsoon"

Radio, "Premium V - Monsoon"

Installed as optional equipment from 10.00 production

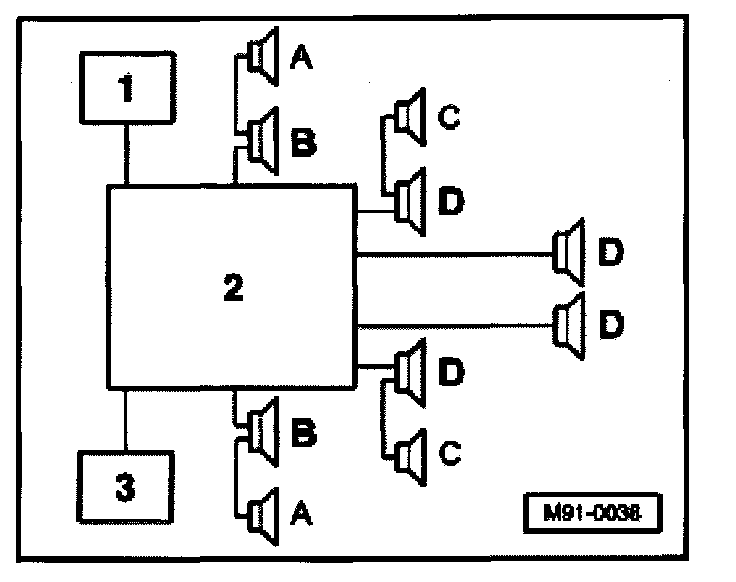

Component overview:





1. Amplifier
2. Radio Monsoon
3. CD player
A. Domed treble loudspeaker in inner plenum chamber cover
B. Bass loudspeaker in inner plenum chamber cover
C. Domed treble loudspeaker in A-pillar trim
D. Bass loudspeaker, front and rear in side panel trim


The radio system consists of the receiver/tape unit supplemented by a separate high power amplifier mounted in the luggage compartment.

High power handling speakers specifically designed for the "Monsoon" system are located in the front and rear doors as with "Premium V".

A CD changer is available as optional equipment.

CD Changer Locations:
- through 07.02 production: in luggage compartment, left.
- from 08.02 production: in center console under armrest.

The system also includes an amplified roof mounted antenna.
