New Beetle Convertible (1Y1) L4-1.8L Turbo (AWV)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
P Code Charts
>>
P1523
P1523

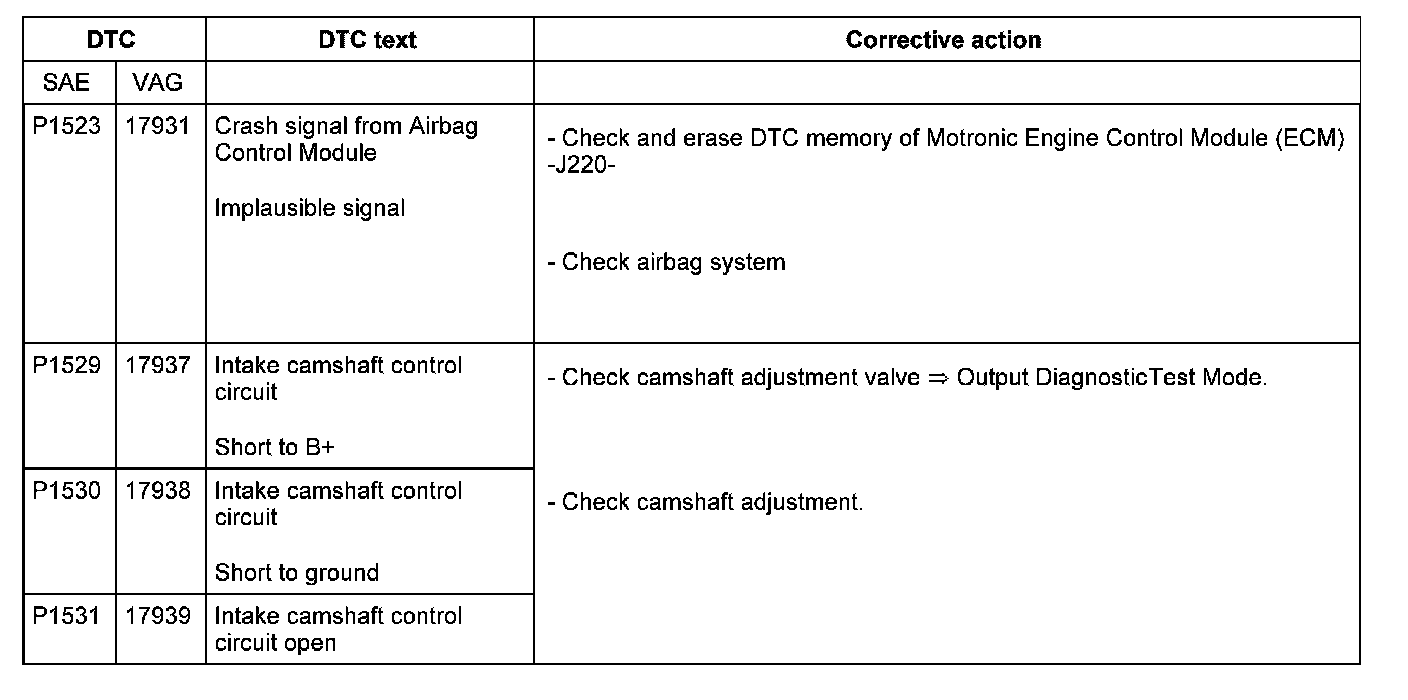

DTC P1523 - P1531:
