DTC 17142

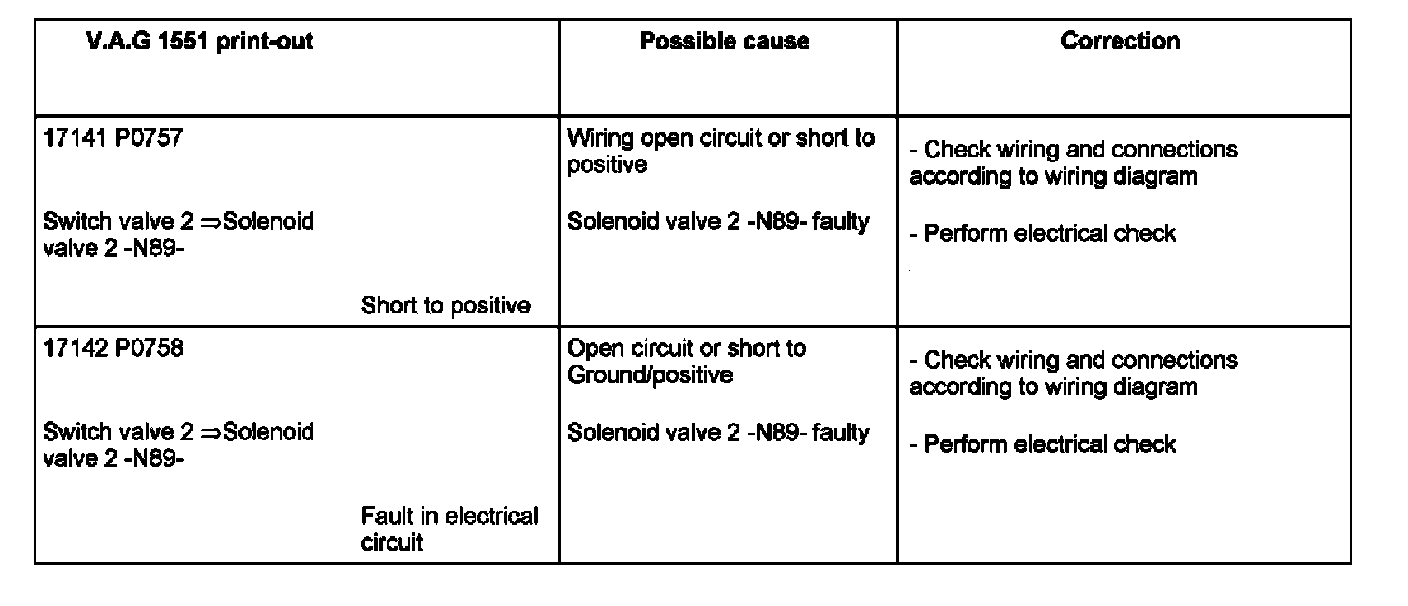

DTC17141 / P0757; DTC17142 / P0758
Switch valve 2 = Solenoid valve 2 -N89/ Fault in electrical circuit





Until the possible cause of the fault has been determined and the following faults have been corrected:
^ mechanical faults
^ hydraulic faults
^ or all affected electrical/Electronic components and cable connections
the Transmission Control Module (TCM) -J217- should not be replaced.
