DTC 17101

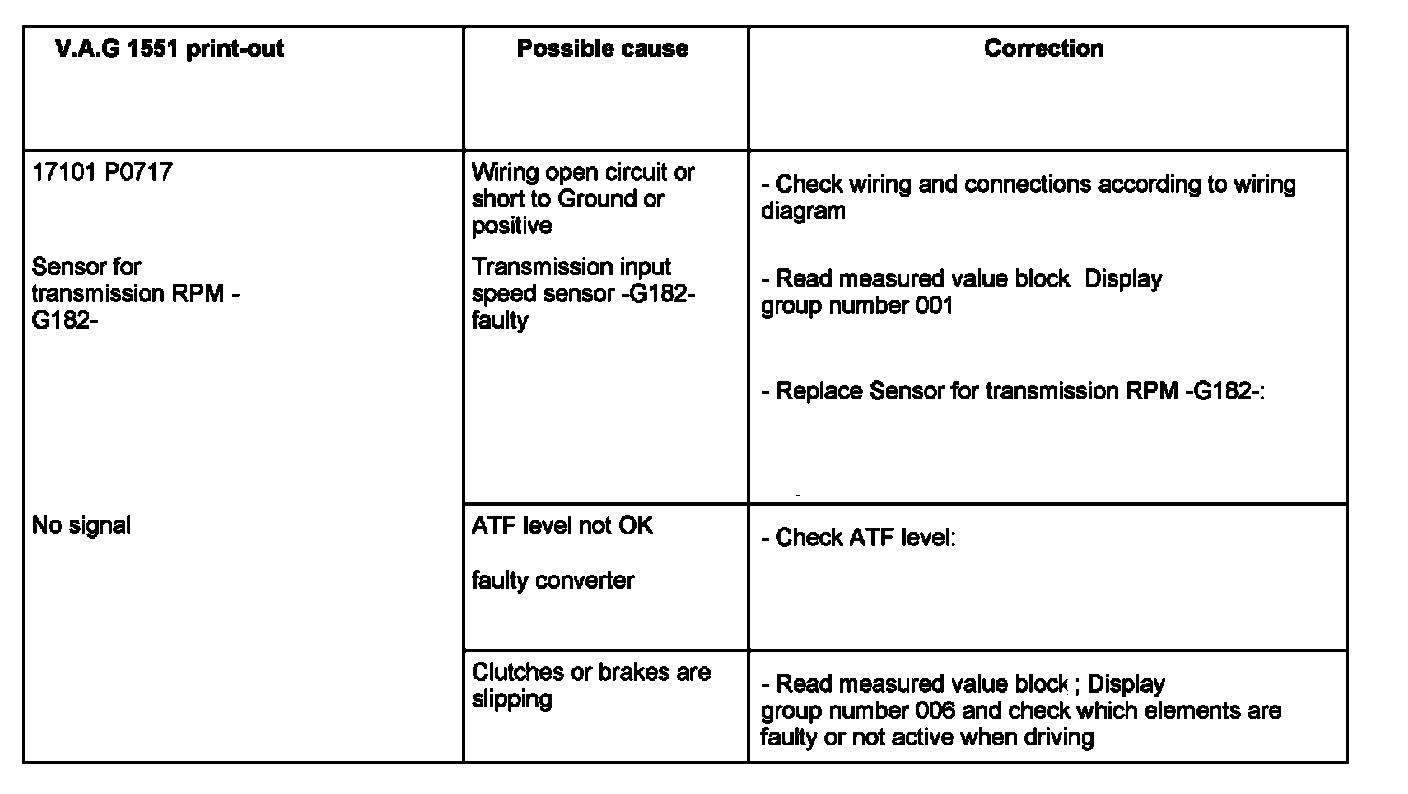

DTC17101 / P0717 Sensor for transmission RPM-G182/ No signal





Until the possible cause of the fault has been determined and the following faults have been corrected:
^ mechanical faults
^ hydraulic faults
^ or all affected electrical/Electronic components and cable connections
the Transmission Control Module (TCM) -J217- should not be replaced.
