DTC 17099

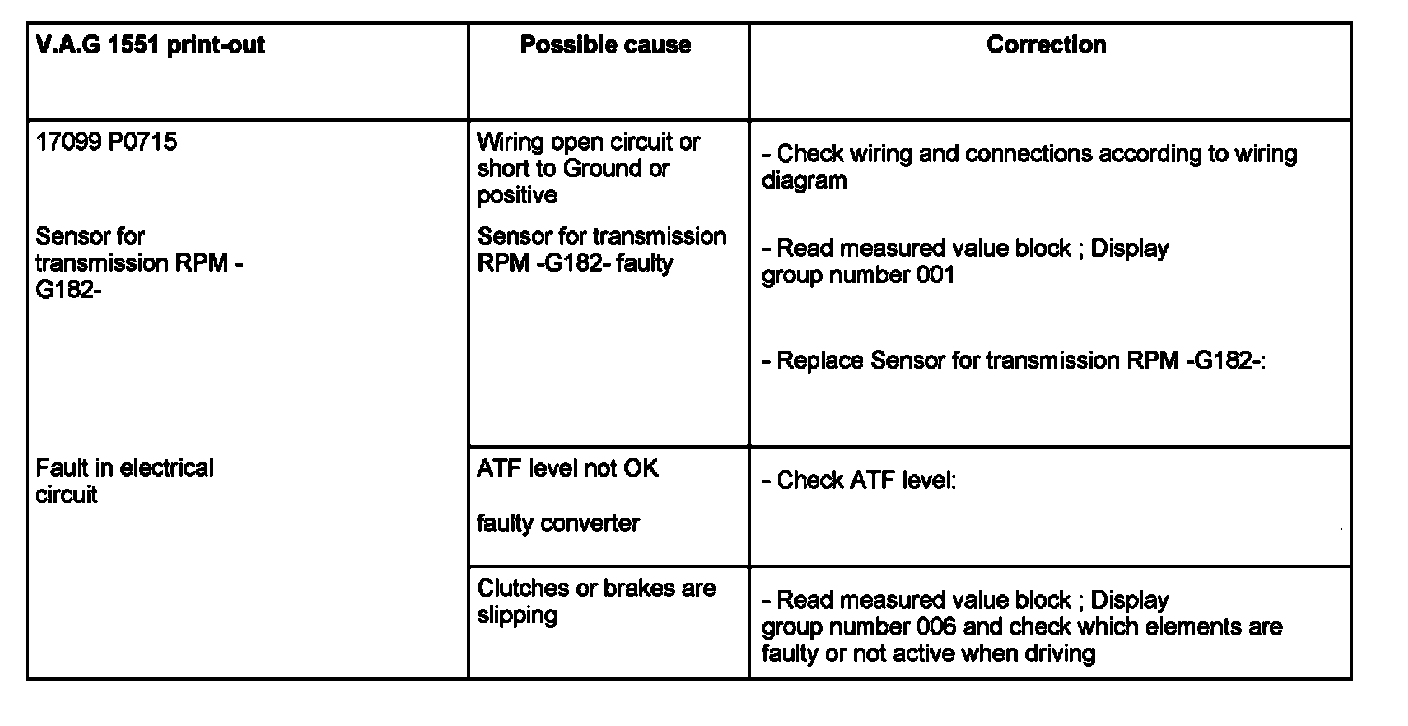

DTC17099 / P0715 Sensor for transmission RPM G182-/ Fault in electrical circuit





Until the possible cause of the fault has been determined and the following faults have been corrected:
^ mechanical faults
^ hydraulic faults
^ or all affected electrical/Electronic components and cable connections
the Transmission Control Module (TCM) -J217- should not be replaced.
