DTC 17095

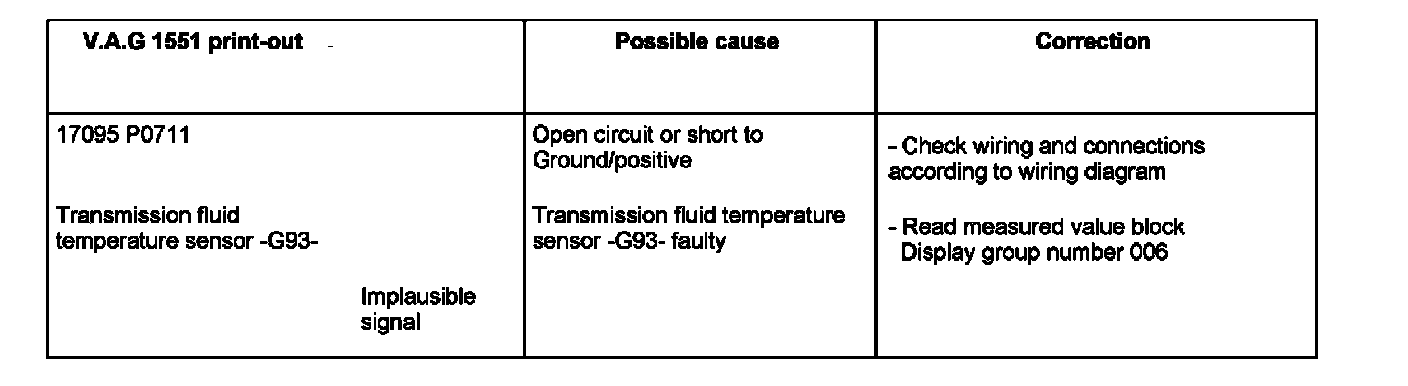

DTC17095 / P0711 Transmission fluid temperature sensor -G93-/ Implausible signal





Until the possible cause of the fault has been determined and the following faults have been corrected:
^ mechanical faults
^ hydraulic faults
^ or all affected electrical/Electronic components and cable connections
the Transmission Control Module (TCM) -J217- should not be replaced.
